Loosening Fuse Box At Side Of Dashboard

  1. Switch off ignition and remove remote control (hand-held transmitter).
  2. Loosen fuse box at side of dashboard -2-  .

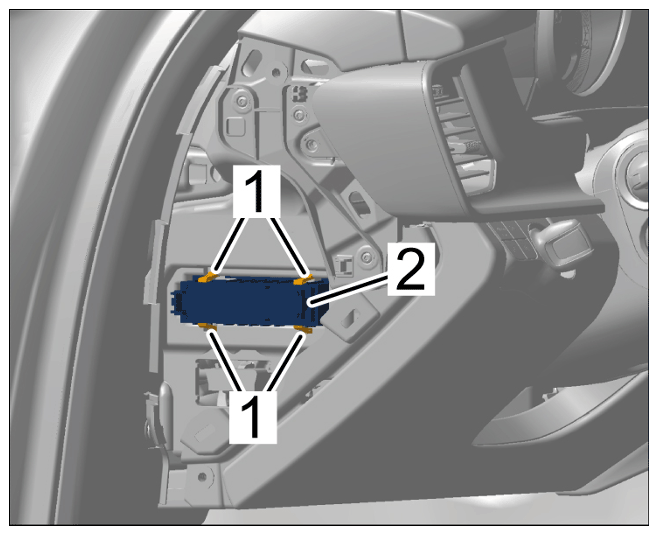

    G15876621Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening fuse box at side of dashboard

    1. 2.1 Release locking lugs -1-  on fuse box at side of dashboard -2-  .
    2. 2.2 Press fuse box at side of dashboard -2-  inwards.
