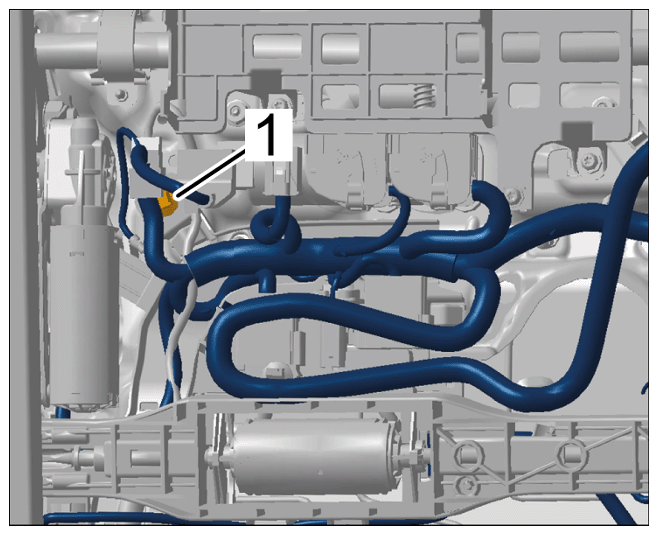

| Screw on ground line |
Item 1 |
Tightening torque |
7 Nm (5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw on ground line |

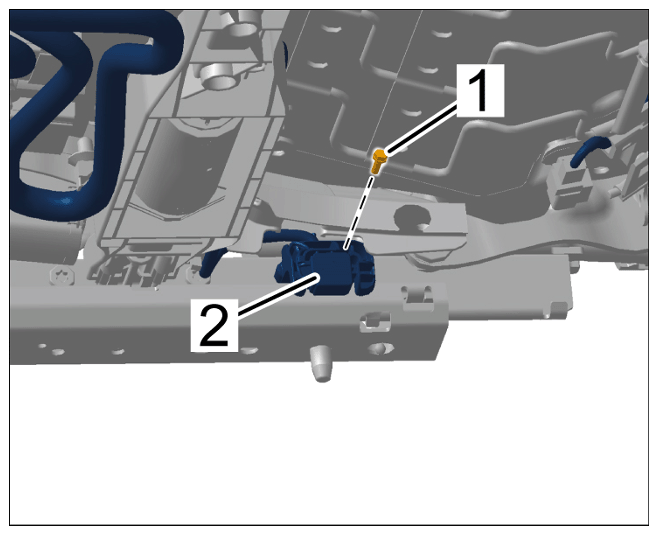

| Screw securing contact switch to seat rail |
Item 1 |
Tightening torque |
1.2 Nm (0.7 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw securing contact switch to seat rail |
