Technical Values

Location	Des...	Type	Basic val...

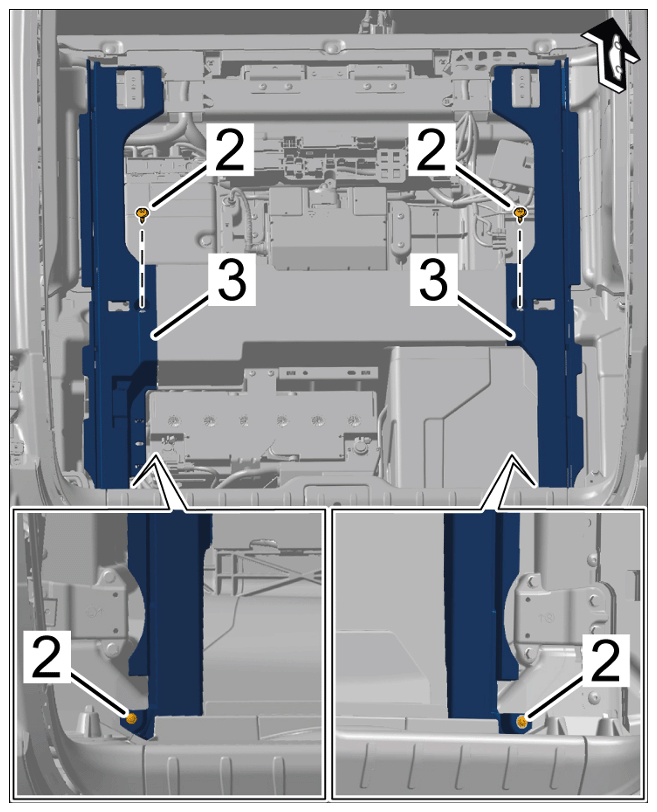

Left and right boot pan cover screws	Item 2	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for luggage compartment cover

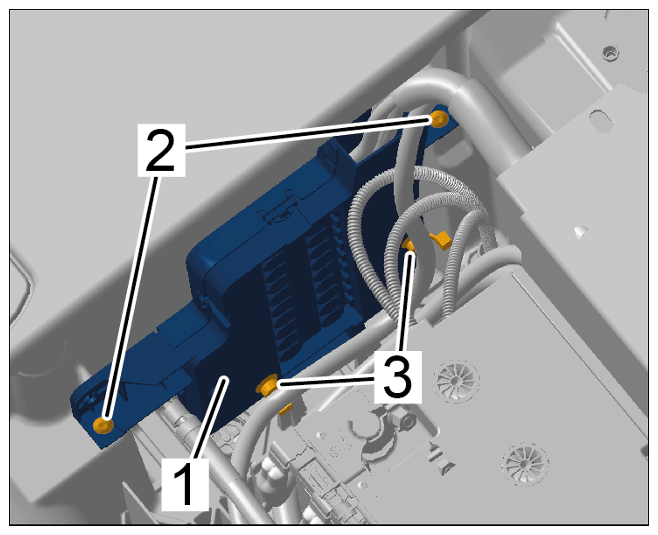

Screws securing power distributor (HSB) to well	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing power distributor (HSB) to well

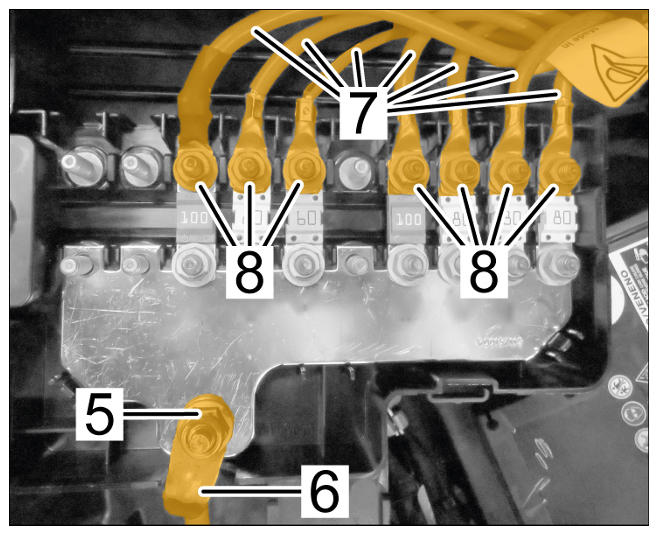

Nut securing line/fuse element to power distributor (HSB)	Item 5 and 8	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut securing line/fuse element to power distributor (HSB)

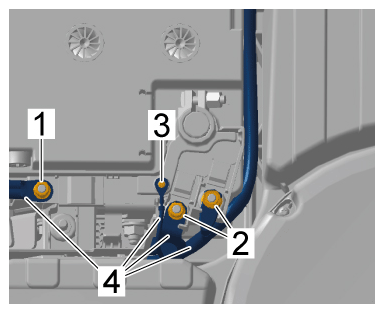

Nut securing positive cable for power distributor to disconnection element	Item 1	Tightening torque	17 Nm (13 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut securing positive cable to power distributor
