Removing Wire Harness For Rear Centre Console

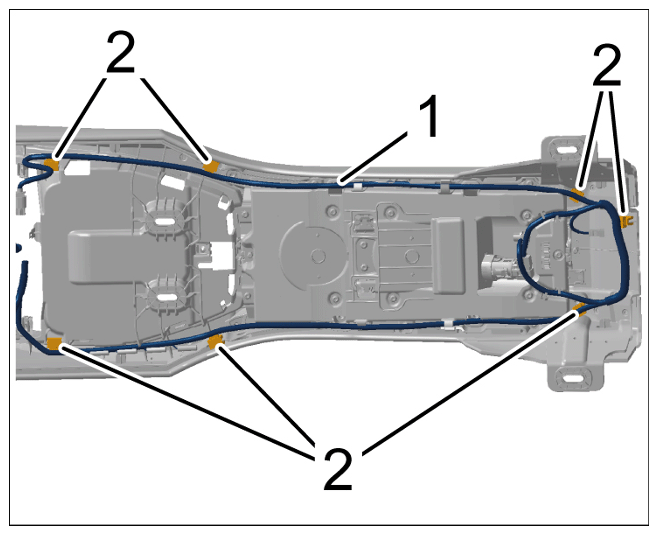

  1. Unclip electric wire harness -1-  from holder -2-  .
    G15876289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping electric wire harness

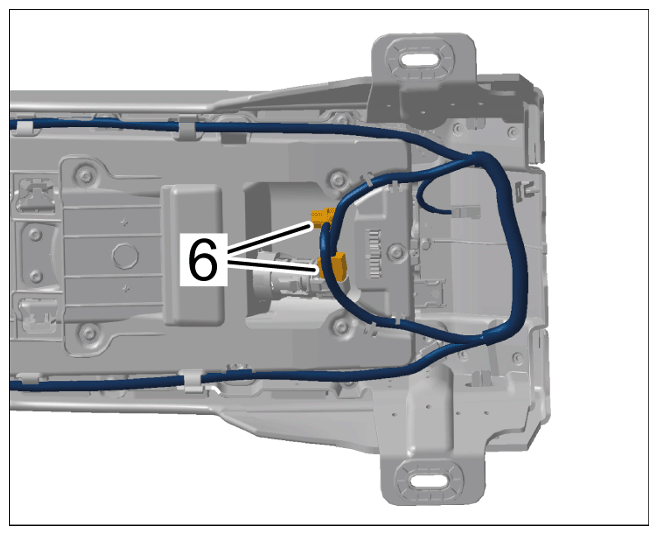

  2. Release and unplug electric plug connections -6-  .
    G15876290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connections

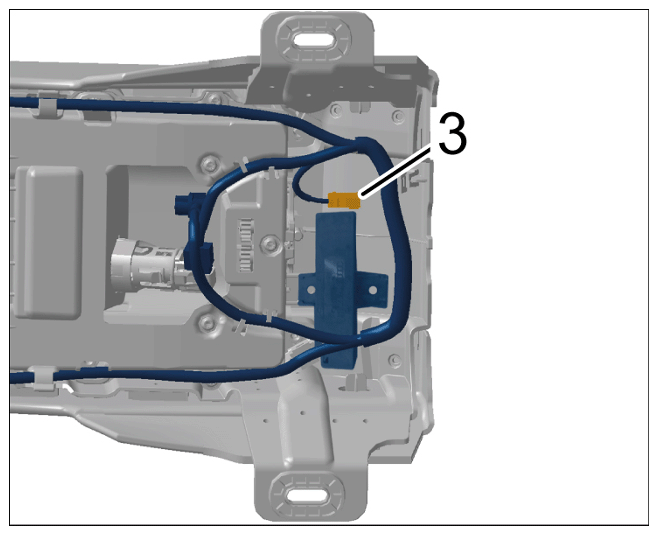

  3. Release and disconnect electric plug connection -3-  on KESSY antenna.
    G15876291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

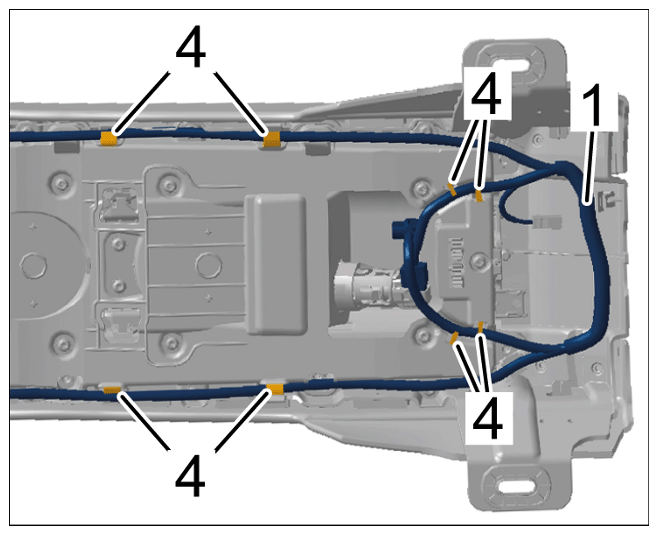

  4. Loosen electric wire harness -1-  from the line brackets -4-  and remove it.
    G15876292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting electric wire harness
