Technical Values

Location	Des...	Type	Basic val...

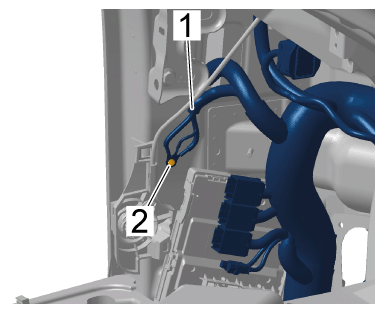

Nut on ground line at right A-pillar	Item 2	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on ground line at right A-pillar

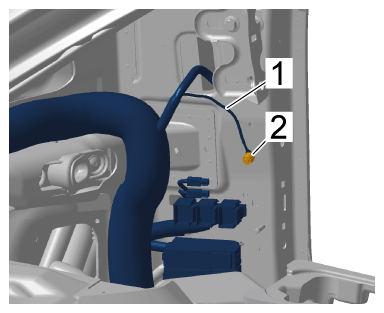

Nut on ground line at left A-pillar	Item 2	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on ground line at left A-pillar

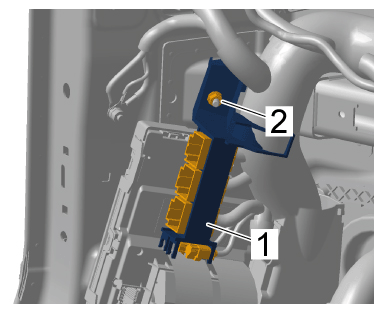

Nut on holder for mounting for electric plug connections on right A-pillar	Item 2	Tightening torque	4.2 Nm (3.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on holder for mounting for electric plug connections on right A-pillar

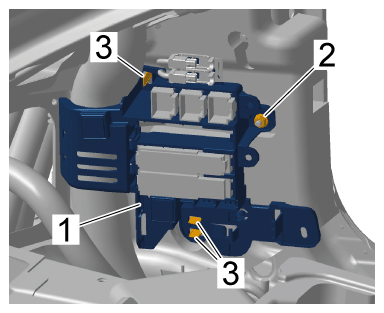

Nut on holder for mounting for electric plug connections on left A-pillar	Item 2	Tightening torque	4.2 Nm (3.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on holder for mounting for electric plug connections on left A-pillar

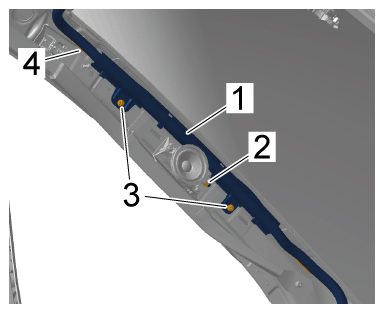

Screw securing holder for electric line for roof to A-pillar	Item 3	Tightening torque	3.7 Nm (2.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing electric line for roof to A-pillar
