Subsequent Work

  1. Install the Gateway control unit.

    > Removing and installing the Gateway control unit

  2. Install air vent under driver's seat.

    > 887519 REMOVING AND INSTALLING AIR VENT

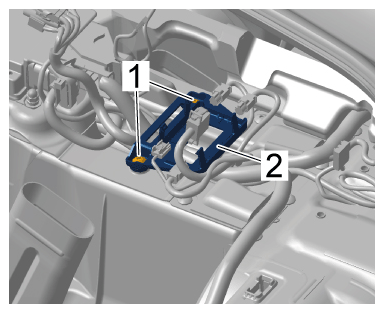

  3. Position USB/IPOD control unit holder -2-  and screw in and tighten screws -1-  > Tightening torque 8 Nm (6 ftlb.)
    G15876202Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screwing in screws

  4. Install USB/IPOD control unit.

    > 919319 REMOVING AND INSTALLING USB/IPOD CONTROL UNIT

  5. Secure the headliner.

    > WM, 708419 REMOVING AND INSTALLING ROOF TRIM PANEL

  6. Fit carpet at the left.

    > 704119 REMOVING AND INSTALLING CARPET

  7. Connect the battery.

    > Work instructions after disconnecting the battery
