Loosening Main Wire Harness In Passenger Compartment At The Left

NOTE: Incorrect handling of main wire harness

Risk of damage to lines
→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.

→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.

→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

Release and disconnect electric plug connection for airbag sensor at the rear door sill.
> 695119 REMOVING AND INSTALLING AIRBAG SENSOR
Unclip holder -1- for electric plug connection for rear seat.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping holders
Release and disconnect electric plug connection for airbag triggering unit.
> 695319 REMOVING AND INSTALLING AIRBAG TRIGGERING UNIT
Unclip line bracket -1- (-arrows- ) and guide out electric line -2- for airbag triggering unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping line bracket
Unclip locking lugs -arrows- and remove cable cover -1- on rear inner sill.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cable cover
Release and disconnect electric plug connection for head airbag.
> 696619 REMOVING AND INSTALLING HEAD AIRBAG UNIT
Unclip line bracket -1- and set electric line for head airbag -2- down in the footwell.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping line bracket
Release and disconnect electric plug connection on rear door.
> 585119 REMOVING AND INSTALLING REAR DOOR

Disconnect electric line for door electrics.

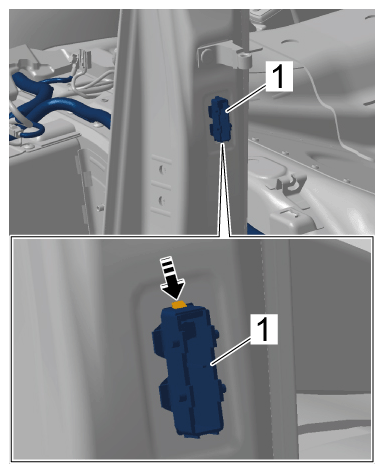

9.1 Press locking lug -arrow- and disengage mounting housing -1- .

9.2 Pull electric line out of the B-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric line for door electrics

Screw off nut -1- on ground point at the bottom of the B-pillar and remove ground lines -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nut
Release and disconnect electric plug connection for left seat-belt pretensioner.
> WM, 691119 REMOVING AND INSTALLING REVERSIBLE SEAT-BELT PRETENSIONER, FRONT

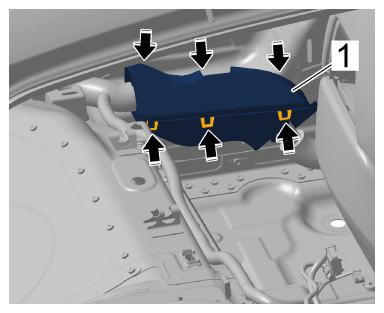

Unclip locking lugs -arrows- and remove cable cover -1- on front inner sill.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cable cover
Cut tie-wrap -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting tie-wraps

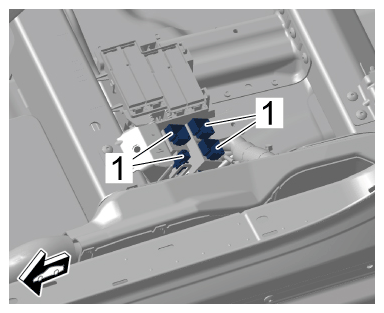

Release electric connectors -1- for left seat connection and remove them from the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric connectors
Loosen fuse box under front seat.
> 978409 LOOSENING AND SECURING FUSE BOX UNDER FRONT SEAT

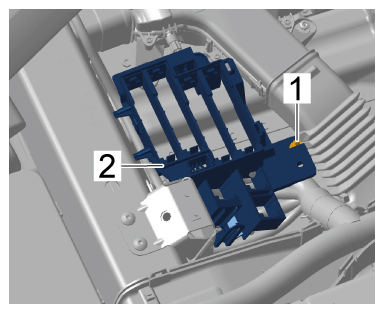

Screw off nut -1- and remove fuse carrier -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nut

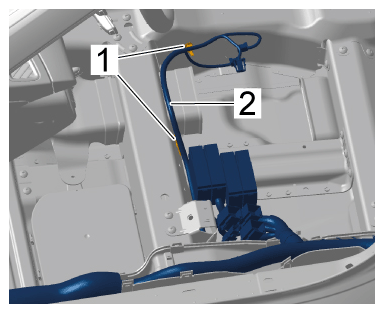

Unclip line bracket -1- and set electric line for air vent -2- down in the footwell.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping line bracket

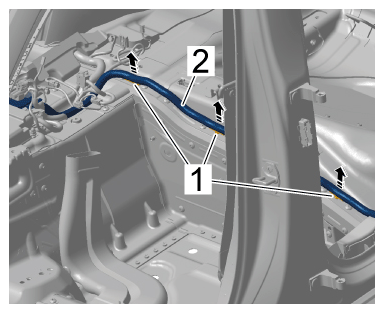

Unclip main wire harness -1- at the front inner sill -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping main wire harness
Release and disconnect electric plug connection for front-end electronics control unit.
> 944919 REMOVING AND INSTALLING CONTROL UNIT FOR FRONT-END ELECTRONICS
Release and disconnect electric plug connection for airbag sensor on the A-pillar.
> 695119 REMOVING AND INSTALLING AIRBAG SENSOR

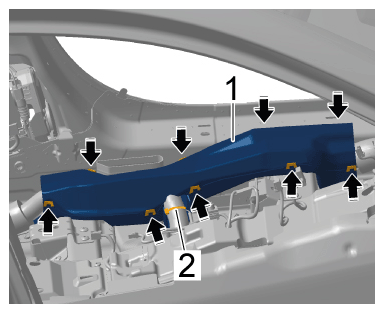

Unclip locking lugs -arrows- and remove cable cover -1- at the A-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cable cover

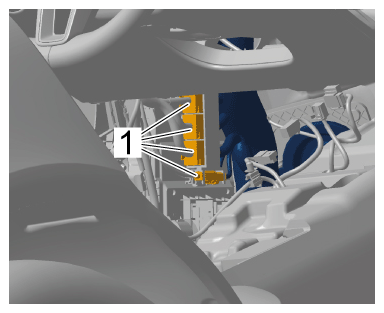

Disconnect electric connectors at the A-pillar (connection point for wire harness for dashboard).

22.1 Release and unplug electric plug connections -1- .

22.2 Unclip electric connectors from the holders.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connections
