Loosening Main Wire Harness In Luggage Compartment

NOTE: Incorrect handling of main wire harness

Risk of damage to lines
→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.

→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.

→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

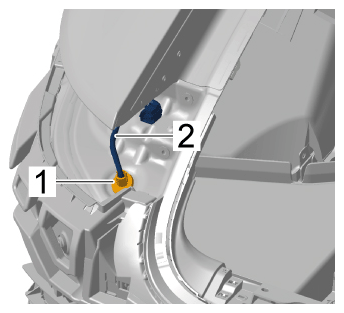

Loosen rubber sleeve -1- and pull out electric line for tail light -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line for tail light
Release and disconnect electric plug connection for KESSY antenna in rear centre console.
> 966719 REMOVING AND INSTALLING REAR KESSY ANTENNA

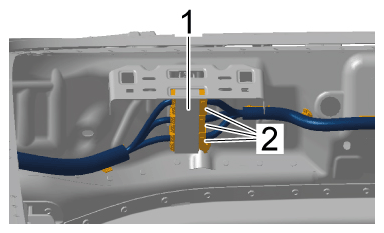

Unclip and disconnect electric plug connections -2- at the connection point on the bumper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections at connection point on bumper
Unclip electric line -1- at the lock carrier -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line at lock carrier
Release and disconnect electric plug connection on Lane Change Assist control unit.
> WM, 917019 REMOVING AND INSTALLING LANE CHANGE ASSIST CONTROL UNIT
Release and disconnect electric plug connection on the garage door opener control unit.
> 967919 REMOVING AND INSTALLING CONTROL UNIT FOR GARAGE DOOR OPENER

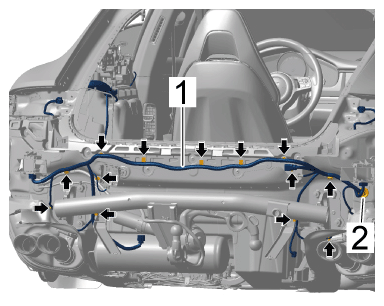

Remove electric line for rear apron -1- .

7.1 Unclip electric line for rear apron -1- (-arrows- ).

7.2 Loosen rubber sleeve -2- and pull electric line for rear apron -1- through into the passenger compartment.

G15876103

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line for rear apron

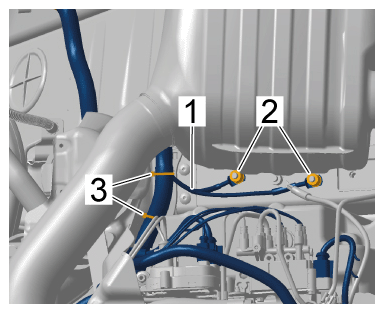

Disconnect ground line -1- .

8.1 Unscrew nuts -2- and remove ground line -1- .

8.2 Cut tie-wrap -3- .

G15876104

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line

Release and disconnect electric plug connections on the valve unit.
> Replacing valve unit
Release and disconnect electric plug connections on the air supply module.
> Removing and installing compressor
Release and disconnect electric plug connections on the compressor.
> Removing and installing compressor
Release and disconnect electric plug connections on the PDCC control unit.
> Removing and installing PDCC control unit

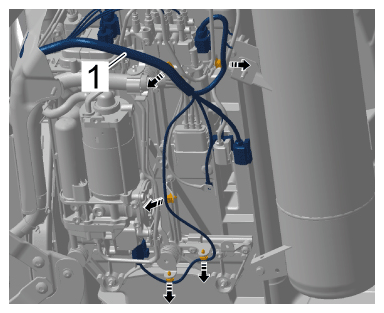

Unclip electric line for the air suspension -1- (-arrows- ) and pull it through towards the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line for air suspension

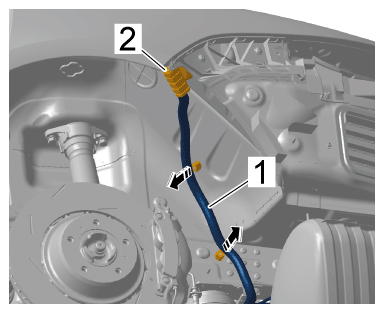

Disconnect electric line -1- from the wheel housing.

14.1 Unclip electric line -1- from the wheel housing -arrows- .

14.2 Pierce through rubber sleeve -2- and pull electric line -1- through into the passenger compartment.

G15876106

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line in wheel housing

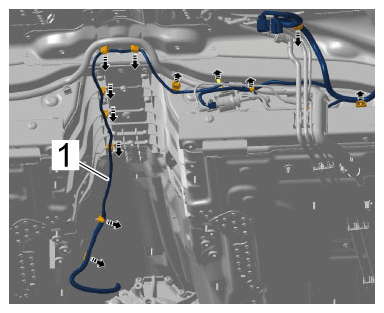

Unclip electric line -1- in the centre tunnel -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line in centre tunnel

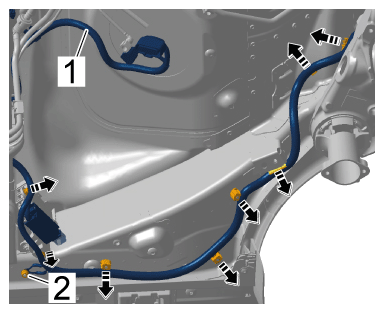

Disconnect electric line -1- on the underbody at the right.

16.1 Unscrew nut -2- and remove ground lines.

16.2 Unclip electric line -1- on the underbody at the right -arrows- .

G15876108

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line on underbody at the right

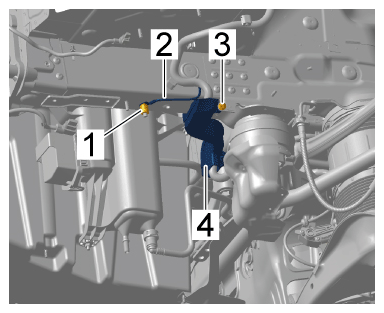

Remove electric line from cable duct -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line in luggage compartment, side
1. 17.1 Unscrew screw -3- .
2. 17.2 Open cable duct -4- and remove electric line.

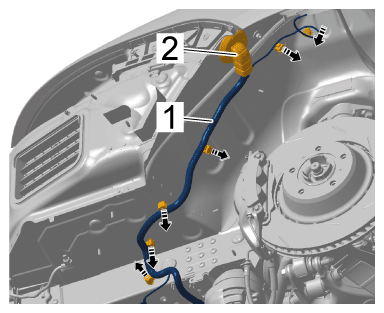

Disconnect electric line -1- from right wheel guide.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line at right wheel guide
1. 18.1 Unclip electric line -1- at right wheel guide -Arrows- .
2. 18.2 Pierce through rubber sleeve -2- and pull electric line -1- through towards the wheel housing.

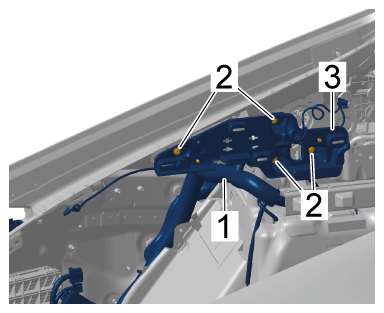

Unclip electric line -1- from the holder.

19.1 Unscrew and remove screws -2- .

19.2 Remove bracket -3- and unclip electric line -1- from the holder.

G15876111

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for electric line

Release and disconnect electric plug connections on the rear left belt retractor.
> WM, 691219 REMOVING AND INSTALLING REAR THREE-POINT BELT, REAR
Release and disconnect electric plug connections on the ParkAssist warning buzzer.
> Removing and installing buzzer for ParkAssist
Release and disconnect electric plug connections at connection point for wire harness for tailgate at the left.
> 972719 REMOVING AND INSTALLING WIRE HARNESS FOR TAILGATE

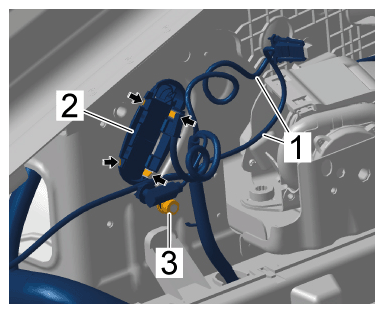

Disconnect electric line -1- on the D-pillar.

23.1 Release locking lugs -arrows- and unclip holder -2- with electric plug connections.

23.2 Unscrew nut -3- and remove ground line.

G15876112

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line on D-pillar

Release and disconnect electric plug connection on the acceleration sensor.
> 433419 REMOVING AND INSTALLING SENSOR FOR BODY

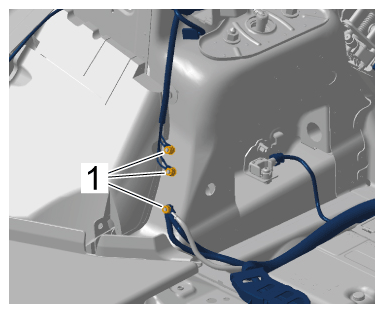

Unscrew nuts -1- and remove ground lines.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground straps
Release locking lugs -Arrows- , open cable duct -1- and remove electric line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line

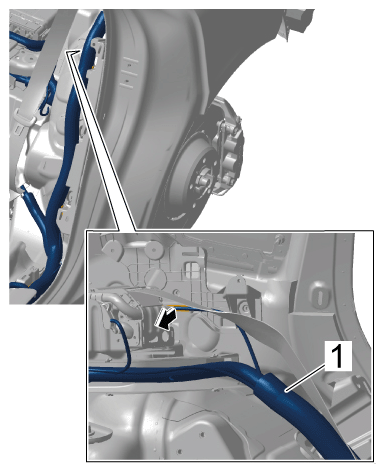

Unclip electric line -1- at the left door aperture -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line at left door aperture

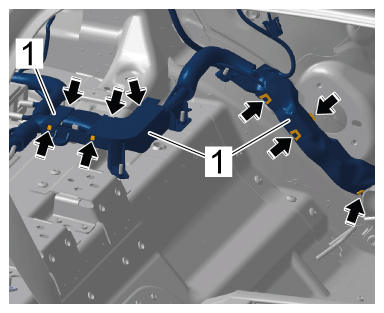

Release locking lugs -arrows- , open cable ducts -1- and remove electric line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable ducts and electric line
Only required for vehicles with panoramic roof (I-no. 3FU):
Release and disconnect electric plug connection on rear panoramic roof control unit.

> 606519 REMOVING AND INSTALLING CONTROL UNIT FOR PANORAMIC ROOF
Disconnect connection points at the top of the roof.
> 972719 REMOVING AND INSTALLING WIRE HARNESS FOR TAILGATE

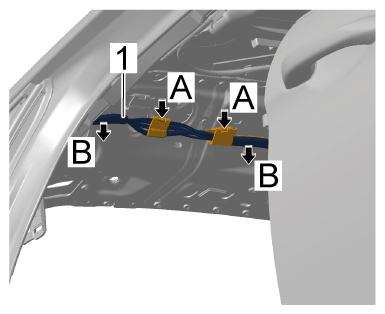

Unclip electric line -1- at the roof -arrows A and B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line at roof

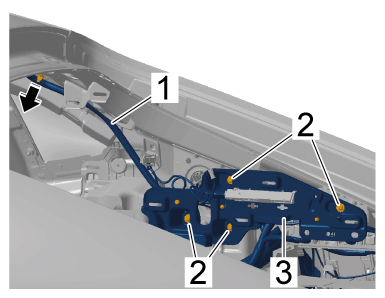

Unclip electric line -1- at the holder and at the right of the roof.

32.1 Unscrew and remove screws -2- .

32.2 Remove bracket -3- and unclip electric line -1- from the holder and roof -arrow- .

G15876118

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for electric line

Release and disconnect electric plug connections on the rear right belt retractor.
> WM, 691219 REMOVING AND INSTALLING REAR THREE-POINT BELT, REAR
Release and disconnect electric plug connection on Surround View camera control unit.
> 917219 REMOVING AND INSTALLING SURROUND VIEW CAMERA CONTROL UNIT

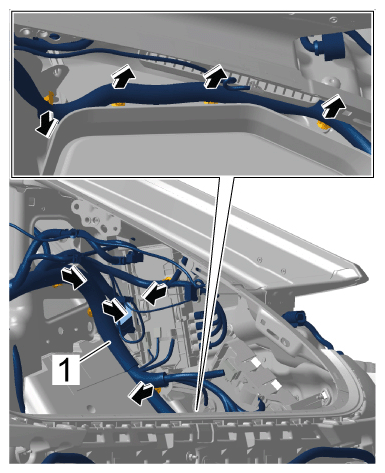

Unclip electric line -1- in the luggage compartment at the right -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line at the right

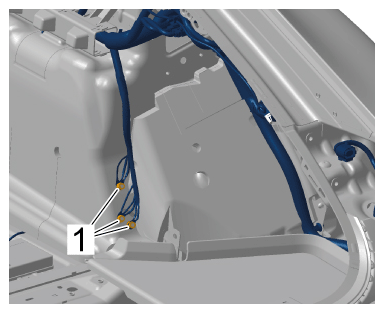

Unscrew nuts -1- and remove ground lines.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground straps

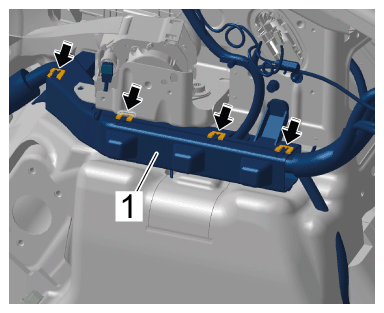

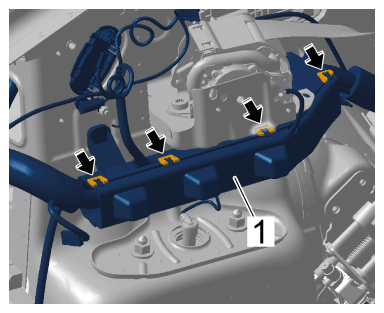

Release locking lugs -Arrows- , open cable duct -1- and remove electric line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable duct and electric line
Only for vehicles with PTV Plus - controlled rear-differential lock (I-no. 1Y1 and/or GH3):
Release and disconnect electric plug connections on control unit for rear-differential lock.

> 397519 REMOVING AND INSTALLING CONTROL UNIT FOR REAR-DIFFERENTIAL LOCK
Release locking lugs -arrows- and open cable ducts -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable ducts

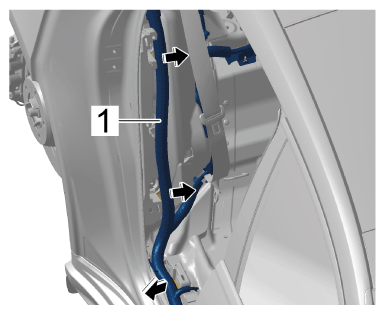

Unclip electric line -1- at the right door -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line at right door
