Disassembling And Assembling Remote Control

Pull emergency key out of the remote control

1. Release lock on emergency key and pull emergency key out of the remote control.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

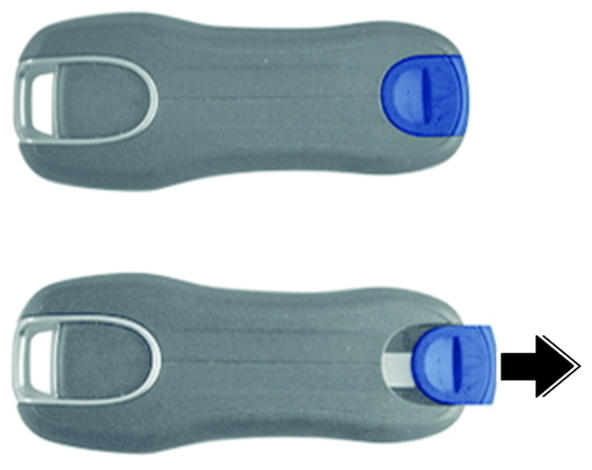

   Pulling out emergency key

2. Unclip and remove side faces at the front of the key.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

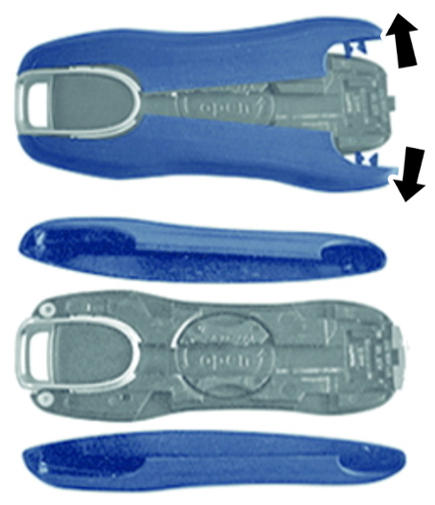

   Unclipping side faces

   Remove battery for remote control

3. Open the battery cover and remove the battery.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

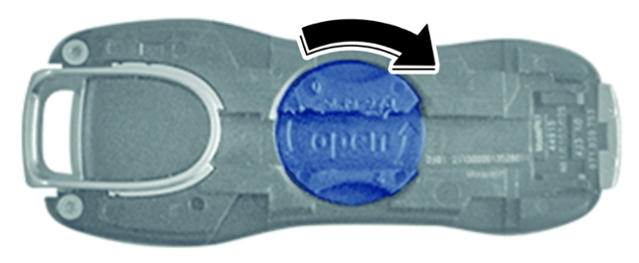

   Opening cover

   Assemble in reverse order.
