Removing Front Camera

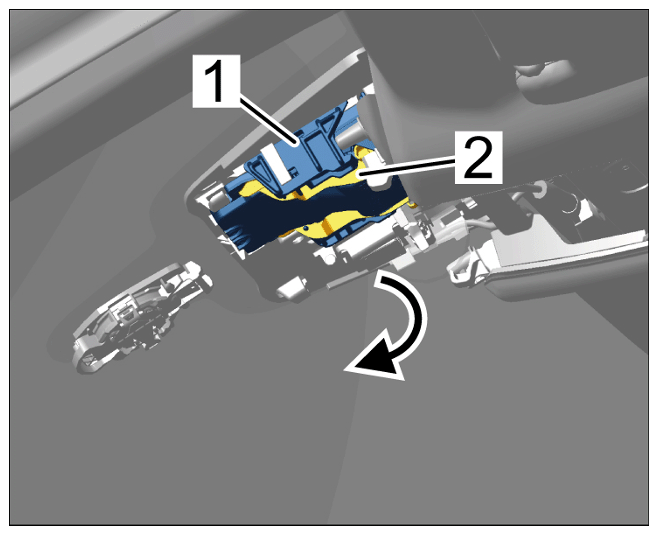

  1. Open clip -2-  by pulling it forward -arrow-  , thereby releasing the front camera -1-  .
    G15876016Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Opening clip

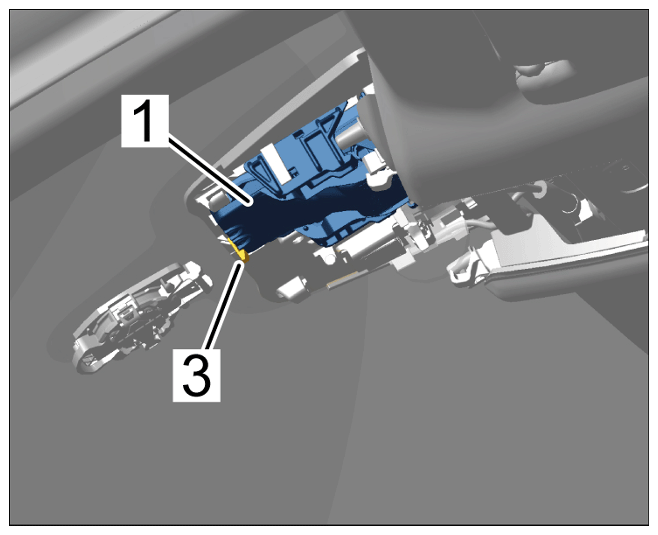

  2. Press gently on the clip -3-  and remove the front camera -1-  in a downward direction until the electric plug connection is accessible.
    G15876017Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing on clip

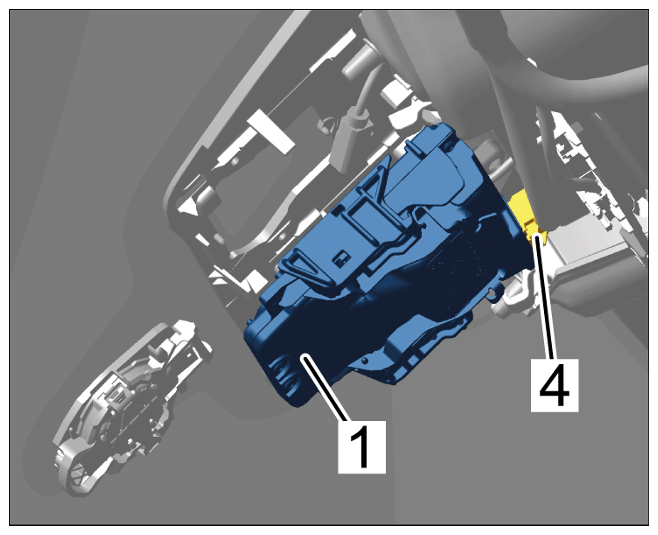

  3. Release and disconnect electric plug connection -4-  .
    G15876018Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection

  4. Remove front camera -1-  .
    G15876019Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front camera
