Removing Switch Console Control Panel

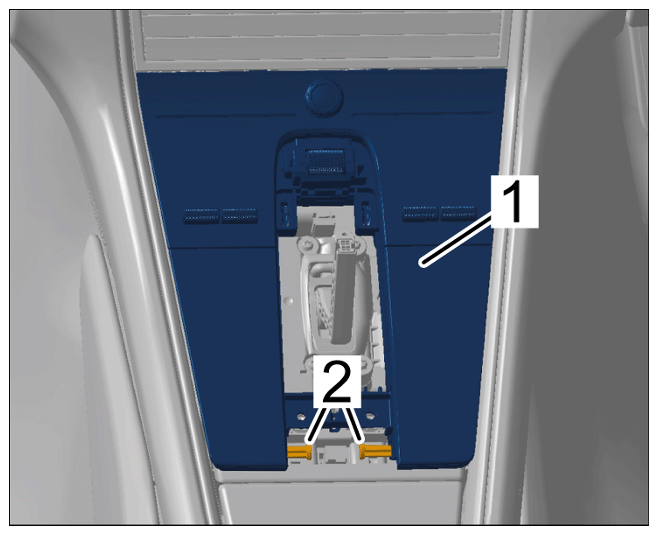

1. Release bolts -2-  on switch console control panel -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing bolts

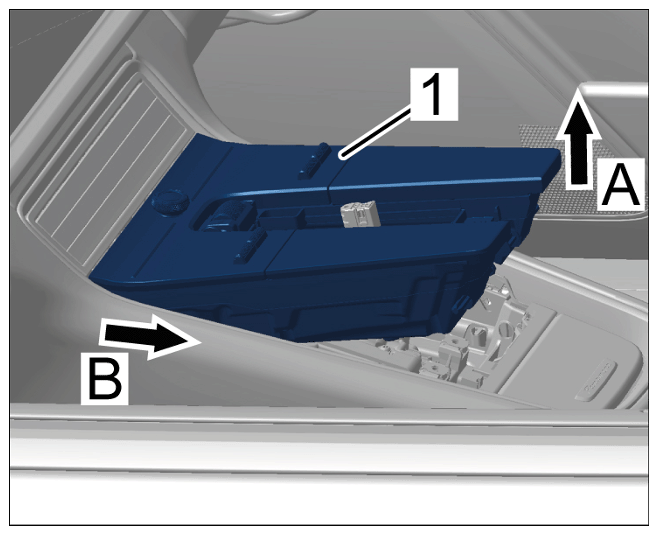

2. Lift up switch console control panel -1-  at the rear -arrow A-  and unclip it at the front -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping switch console control panel

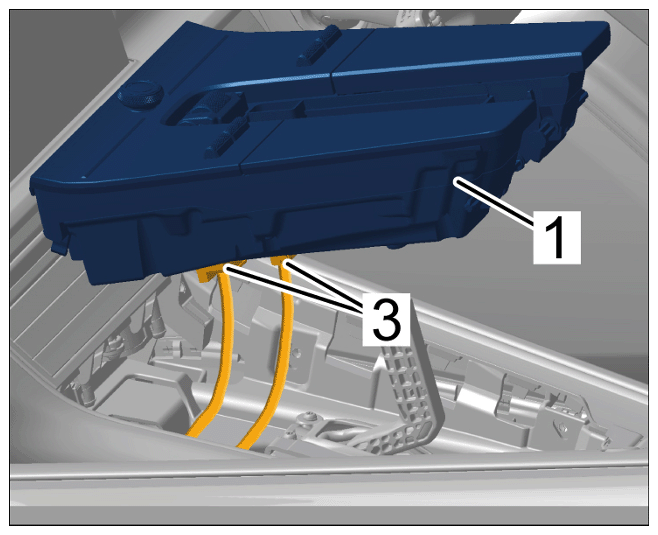

3. Release and disconnect electric plug connections -3-  and remove switch console control panel -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing switch console control panel
