Removing Windscreen Projection Control Unit

  1. Unscrew fastening screws -1, 2-  .

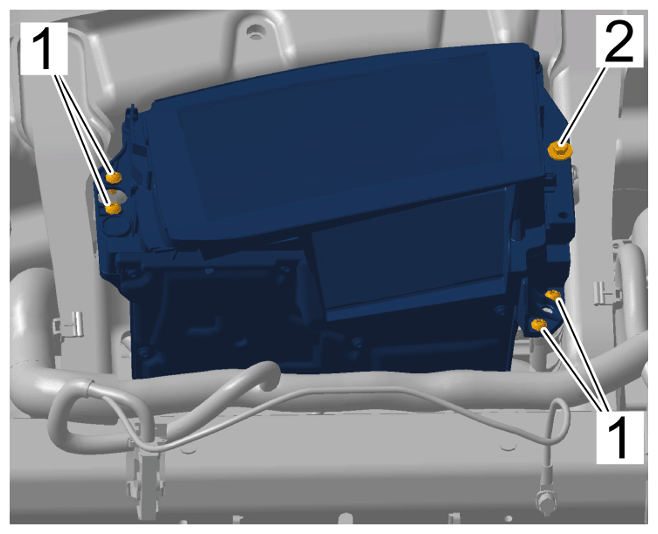

    G15875649Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  2. Remove windscreen projection control unit from dashboard bracket until the electric plug connections are accessible.
  3. Release and unplug electric plug connections -1-  .
    G15875650Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  4. Unclip electric wire harness -2-  from windscreen projection control unit -arrow-  .

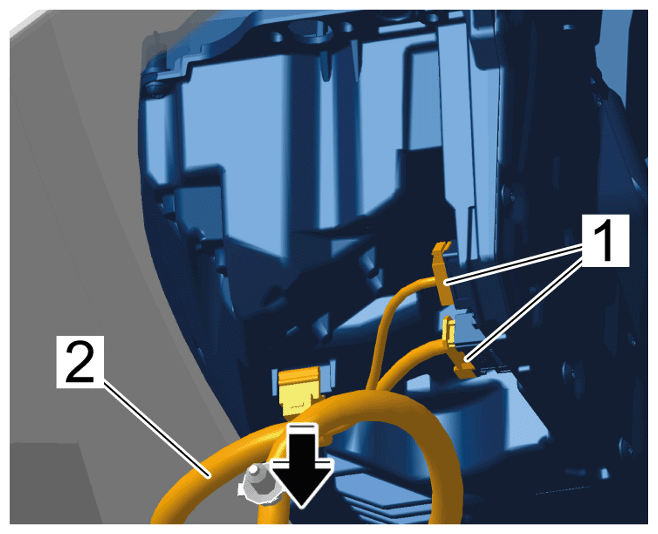

    G15875651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

  5. Remove windscreen projection control unit.
