Installing Windscreen Projection Control Unit

1. Installation is performed in reverse order. Pay particular attention to the following:

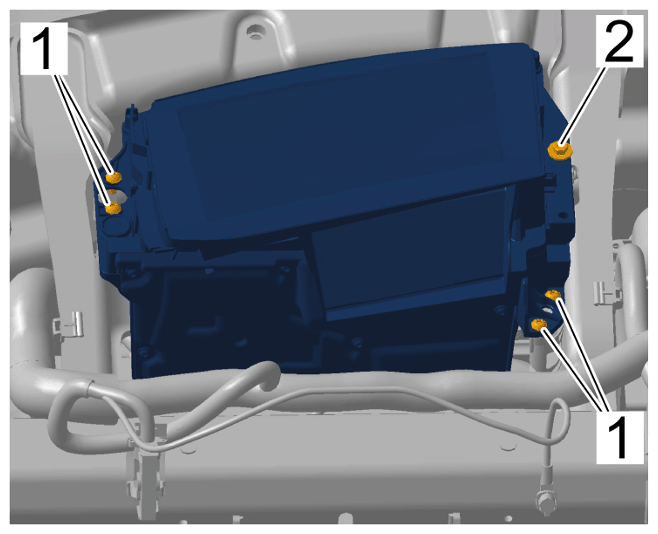

   Tighten fastening screws -1-  to > Tightening torque 4 Nm (3 ftlb.)  until secure.

   Tighten fastening screw -2-  to > Tightening torque 5.5 Nm (4 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
