Preliminary Work

  1. Remove cover under dashboard at the left.

    > 702219 REMOVING AND INSTALLING COVER UNDER DASHBOARD

  2. Remove left footwell outlet vent -1-  .

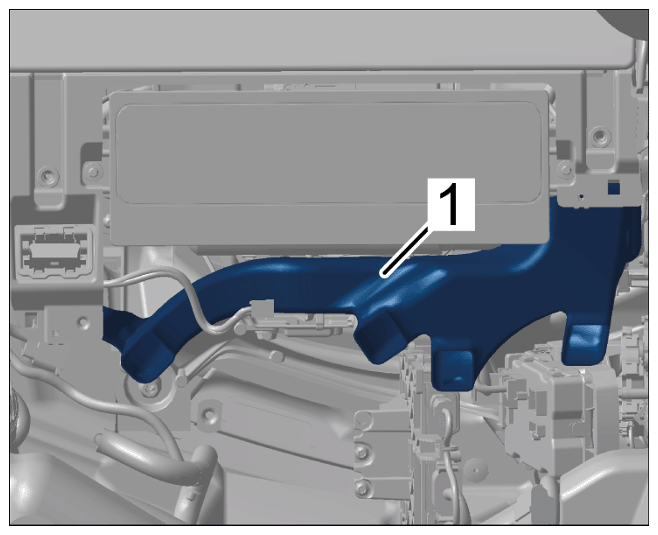

G15875643Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing left footwell outlet vent
