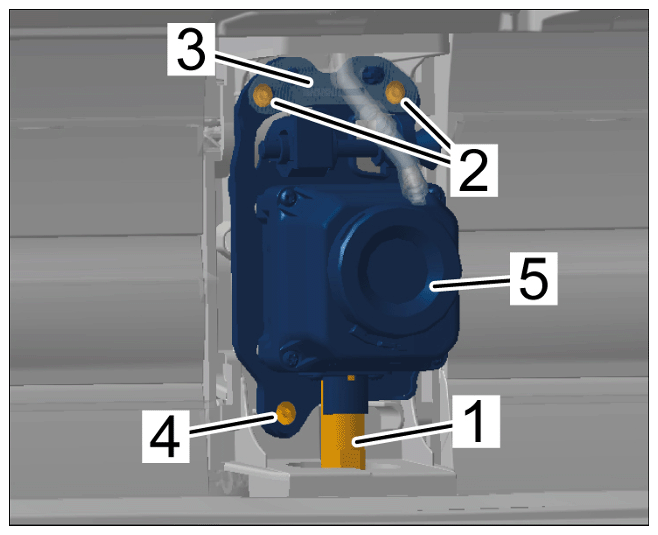

| Screws on infrared camera holder |
Item 2 |
Tightening torque |
2.5 Nm (1.8 ftlb.) |
+/- 10 % |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws on infrared camera holder |
| Screws on infrared camera |
Item 4 |
Tightening torque |
2.5 Nm (1.8 ftlb.) |
+/- 10 % |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws on infrared camera |
