Removing Infrared Camera

  1. Remove infrared camera -5-  .
    1. 1.1 Release and unplug electric plug connection -1-  .
    2. 1.2 Unscrew and remove screws -2-  .
    3. 1.3 Move spray nozzle holder -3-  aside.
    4. 1.4 Unscrew and remove screw -4-  .
    5. 1.5 Remove infrared camera -5-  .

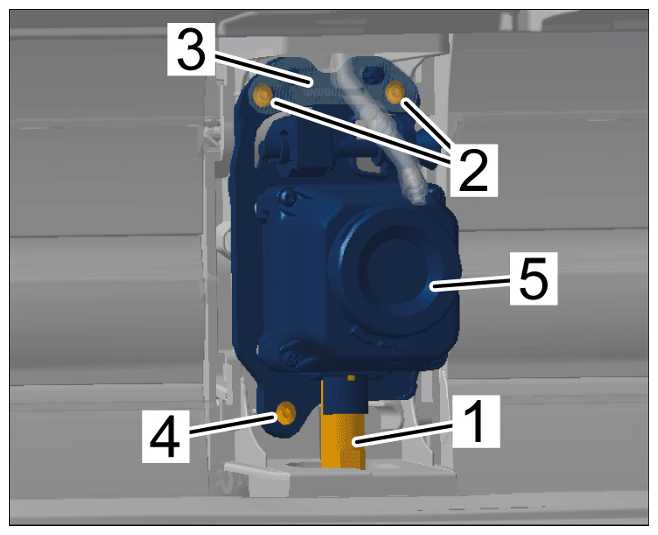

    G15875636Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing infrared camera
