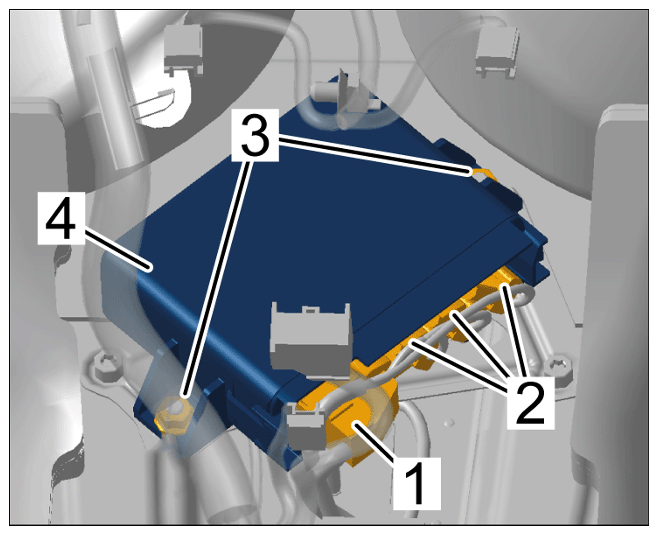

Removing PCC/PVTS Control Unit
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Before removing the PCC/PVTS control unit, the system must be set to Service mode .
Workshop mode can only be set by the customer using Car Connect.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.
