Removing Plug Socket In Luggage Compartment

  1. Unplug electrical plug connection -arrow-  .

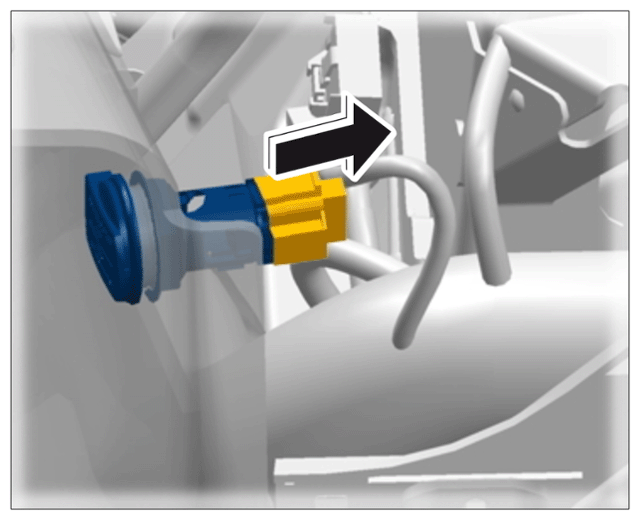

    G15875622Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off electric plug connection

  2. Use an open-ended wrench to hold the plastic nut behind the trim panel and unscrew the plug socket -arrows-  .

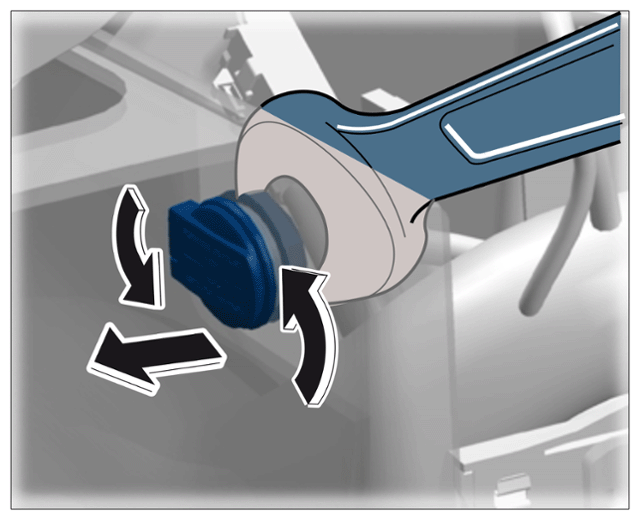

    G15875623Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing plug socket in luggage compartment
