Removing Plug Socket In Front Centre Console

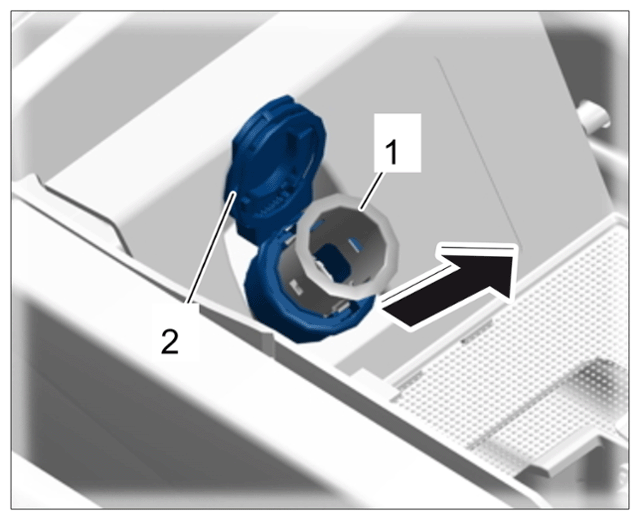

  1. Open the cover -2-  and press out the plug socket -1-  using a screwdriver.
    G15875619Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing plug socket in centre console
