Removing Plug Socket In Front Centre Console

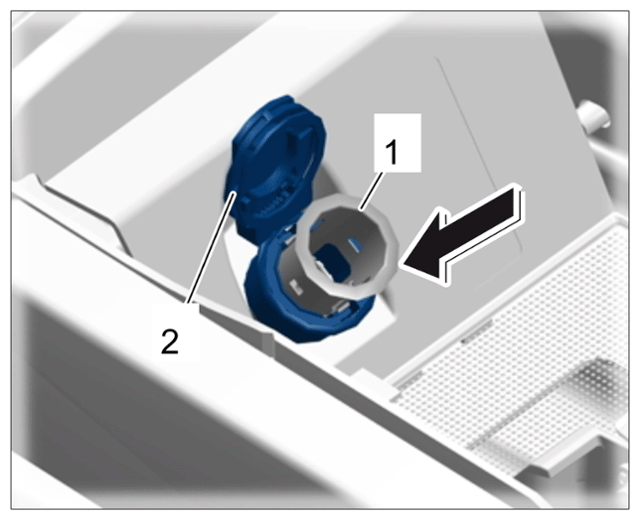

  1. Open the cover -2-  and push in plug socket -1-  (-arrow-  ).
    G15875628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing plug socket in centre console
