Removing 230-Volt Plug Socket In Rear Armrest

1. Unclip and remove cover on multimedia interface.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

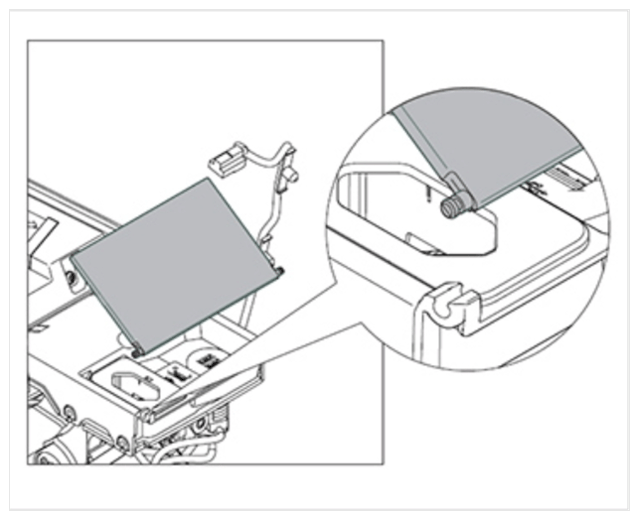

   Cover on multimedia interface

2. Unclip plug socket from below and remove it by pulling it downwards.
3. Unclip electric line from bracket.
4. Release and disconnect electric plug connection on inverter.
5. Loosen fastening screws on inverter and remove inverter with wiring harness for plug socket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

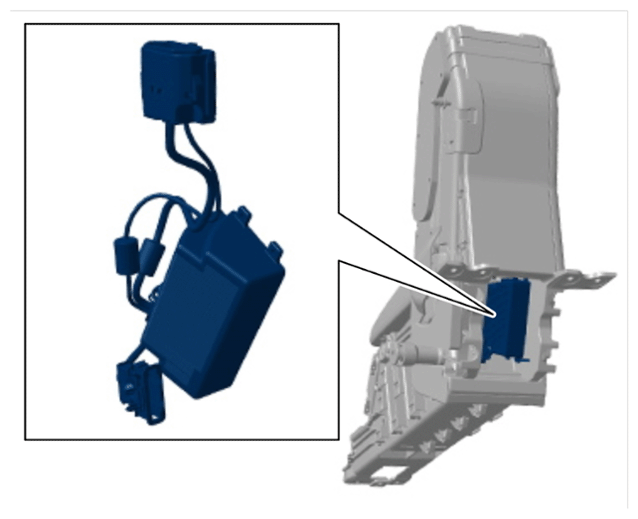

Disconnecting inverter
