Adjusting rear-axle toe

  1. Turn the toe eccentric adjuster -B-  as required after loosening the lock nut -A-  .

    Then tighten lock nut -A-  using interchangeable head T40183  on the toe eccentric adjuster -B-  . Tightening torque 95 Nm (70 ftlb.)

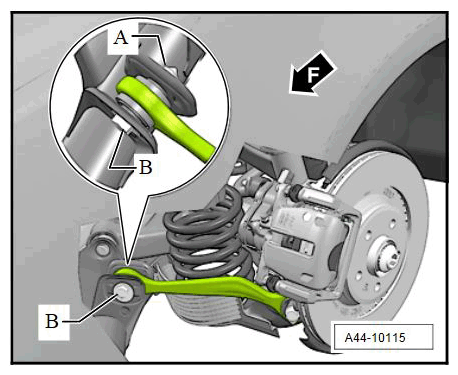

    G11984588

    Rear-axle toe eccentric adjuster
