Removing wheel electronics

The wheel electronics unit is located on the valve in the outer rim base.

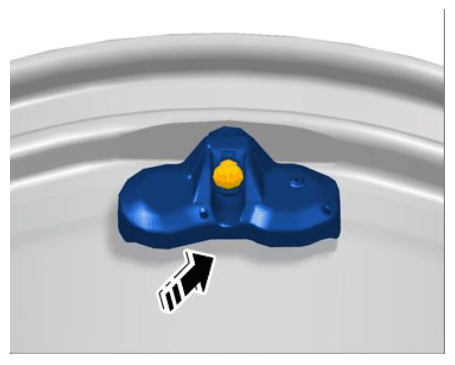

Overview of wheel electronics

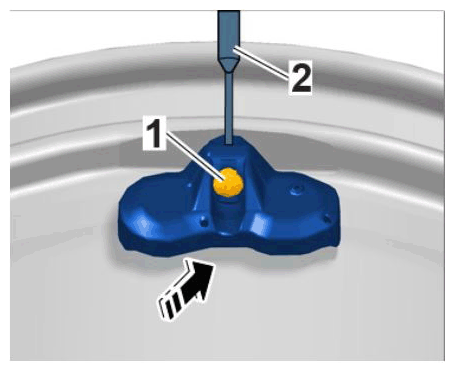

1. Loosen fastening screw -1-  on the wheel electronics unit. If necessary counter in the bore at the valve foot using a suitable assembly pin, e.g. steel pin Ø approx. 1.8 mm.

   Wheel electronics mounting.

2. Loosen the union nut and remove the valve.
