Checking Disc Wheels

Maximum permissible radial runout and lateral runout of the wheel with tyre = 1.25 mm. Values less than 1.0 mm - around 0.5 mm would be better - are desirable. For this purpose, match the tyre (turn the tyre on the rim if necessary).

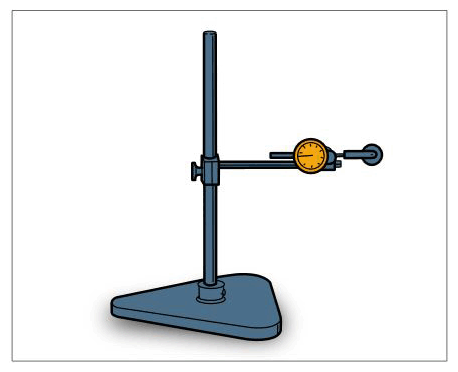

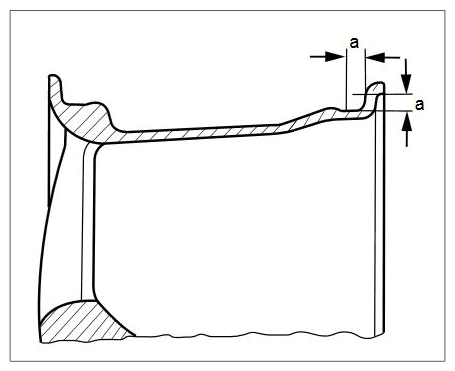

Maximum permissible radial runout and lateral runout -a-  of alloy wheels = 0.7 mm.

Dimension a

If in isolated cases further measurements are necessary, carry out the following procedure.

1. To measure wheels without tyres, remove the wheel from the vehicle. → 440519 REMOVING AND INSTALLING WHEEL .
2. Remove the tyre from the alloy wheel. → 444019 MOUNTING TYRES (REMOVING AND INSTALLING TYRES .
3. Clamp the wheel on the balancing machine and take measurements at the points -a-.
