Removing Front Belt Lock

  1. Loosen two fixing clips -1-.

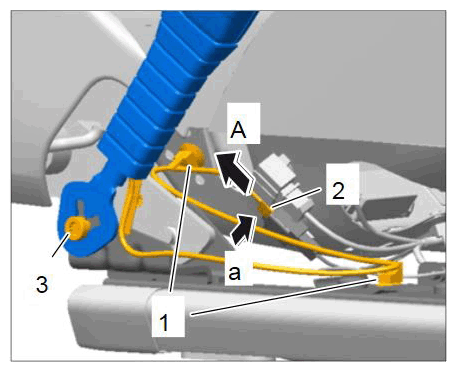

    G11981539

    Removing seat-belt buckle

  2. Release electric plug connection -2- (-a-  ) and disconnect it -A-  .
  3. Unscrew fastening screw -3- on the seat-belt buckle.
