Model Values

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1
Roof to front lid	D3	Gap dimension	10 mm	.2 mm
Roof to front lid	D4	Gap dimension	1.7 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Roof to front lid
Front lid to rear lid	D5	Gap dimension	2.1 mm	+/-0.5 mm
Front lid to rear lid	D6	Gap dimension	1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid to rear lid
Rear lid to roof	D7	Gap dimension	10 mm	+/-1.2 mm
Rear lid to roof	D8	Gap dimension	0.8 mm	+/-0.5 mm

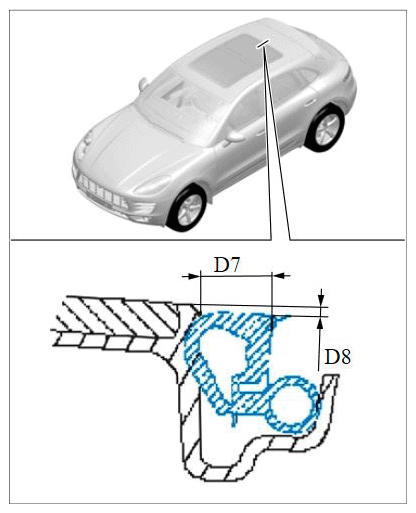

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lid to rear of roof
