Gap Dimensions Front Door/Rear Door/Side Window

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

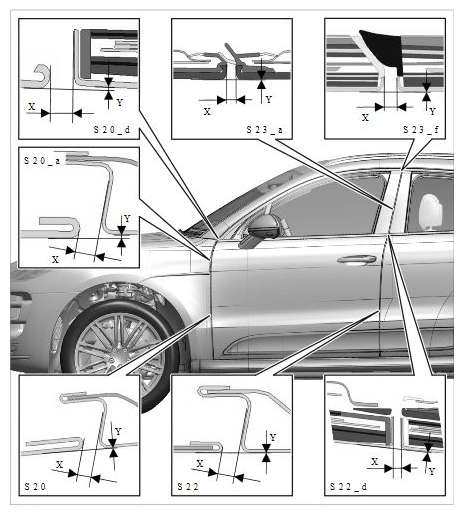

G11984068

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S20_d - → Gap dimension: 4.2 mm+/-1 mm

G11984069

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S20_d - → Gap dimension: 1 mm

G11984070

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S23_a - → Gap dimension: 4.2 mm+/-1 mm

G11984071

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S23_a - → Gap dimension: 0 mm

G11984072

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S23_f - → Gap dimension: 4.2 mm+/-1 mm

G11984073

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S23_f - → Gap dimension: 0 mm

G11984074

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S20_a - → Gap dimension: 4.1 mm+/-0.5 mm

G11984075

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S20_a - → Gap dimension: 1 mm

G11984076

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S20 - → Gap dimension: 4.1 mm+/-0.5 mm

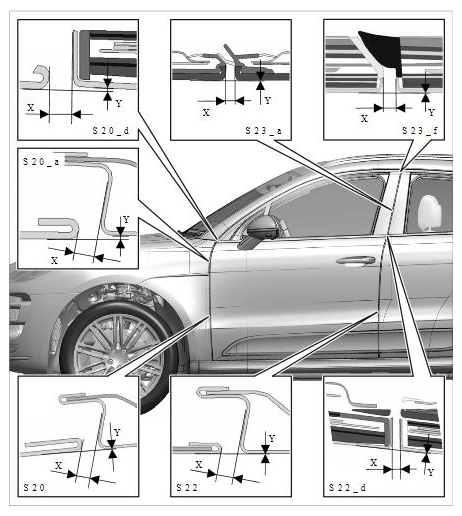

G11984077

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S20 - → Gap dimension: 0 mm

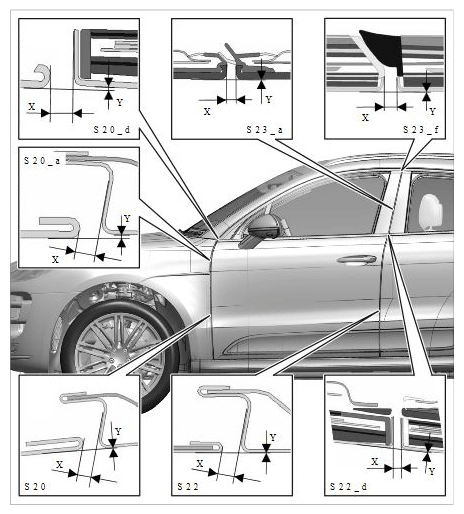

G11984078

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S22 - → Gap dimension: 4.2 mm+/-0.5 mm

G11984079

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S22 - → Gap dimension: 0 mm

G11984080

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S22_d - → Gap dimension: 4.2 mm+/-1 mm

G11984081

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

S22_d - → Gap dimension: 0 mm

G11984082

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door

G11984083

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

S21 - → Gap dimension: 4.5 mm+/-2 mm

G11984084

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

S21 - → Gap dimension: 0 mm

G11984085

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

S23b_0 - → Gap dimension: 4.5 mm+/-1 mm

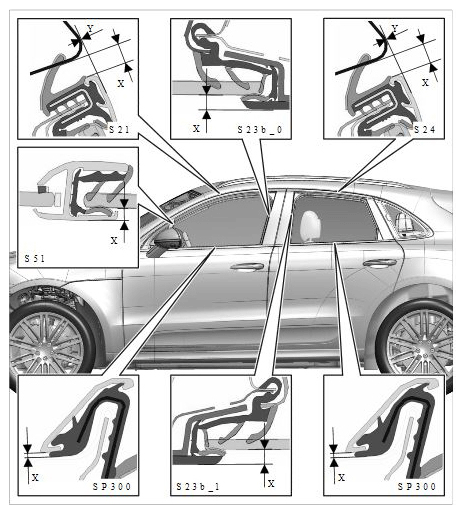

G11984086

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions of front door to rear door

S24 - → Gap dimension: 4.5 mm+/-2 mm

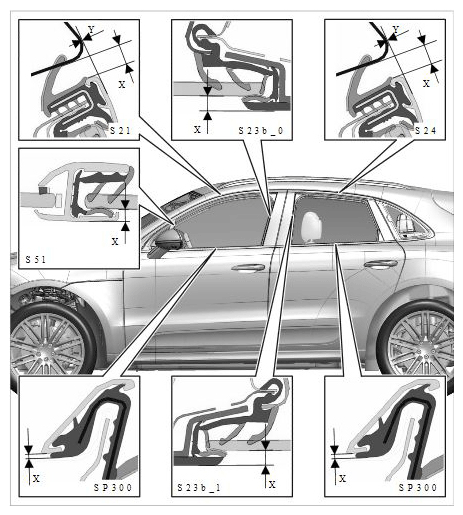

G11984087

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

S24 - → Gap dimension: 0 mm

G11984088

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

S51 - → Gap dimension: 4.1 mm+/-1 mm

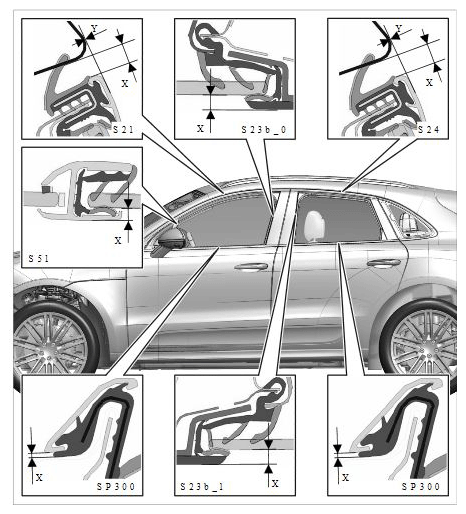

G11984089

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

SP300 - → Gap dimension: 0.8 mm+/-0.5 mm

G11984090

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

S23b_1 - → Gap dimension: 4.5 mm+/-1 mm

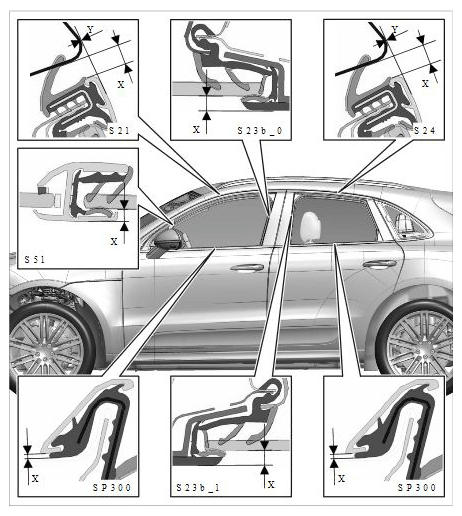

G11984091

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

SP300 - → Gap dimension: 0.8 mm+/-0.5 mm

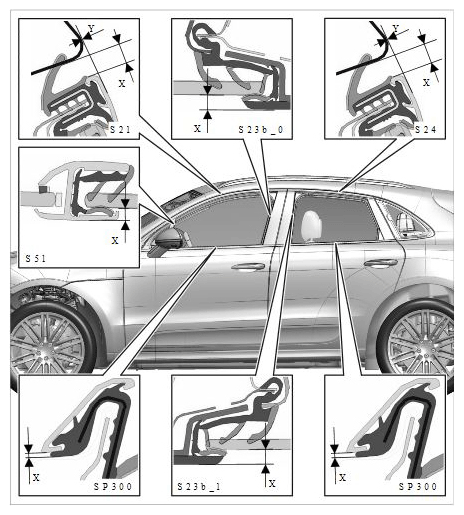

G11984092

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for front door to rear door

G11984093

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S25 - → Gap dimension: 3.5 mm+/-0.5 mm

G11984094

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S25 - → Gap dimension: 0 mm

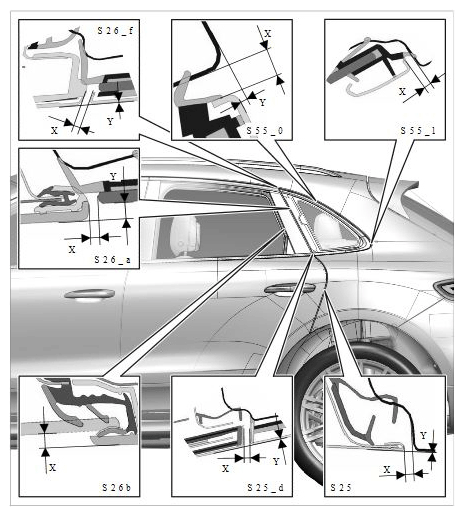

G11984095

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S25_d - → Gap dimension: 3.5 mm+/-1 mm

G11984096

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S25_d - → Gap dimension: 0 mm

G11984097

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S26b - → Gap dimension: 4.6 mm+/-1 mm

G11984098

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S26_a - → Gap dimension: 3.5 mm+/-1 mm

G11984099

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S26_a - → Gap dimension: 4.2 mm+/-1 mm

G11984100

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S26_f - → Gap dimension: 3.5 mm+/-1 mm

G11984101

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S26_f - → Gap dimension: 0.3 mm

G11984102

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S55_0 - → Gap dimension: 4.5 mm+/-1.5 mm

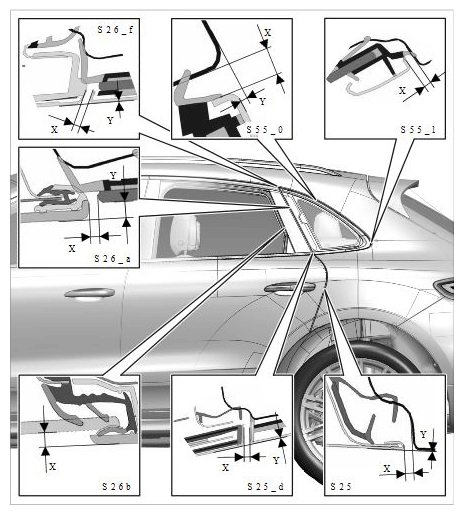

G11984103

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S55_0 - → Gap dimension: 0.8 mm+/-1 mm

G11984104

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window

S55_1 - → Gap dimension: 3.8 mm+/-0.8 mm

G11984105

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimensions for rear door/rear side window
