Underbody Protection

Information:

• In the case of repair work, the standard chipping protection/undersealing of the body structure must be restored according to the following illustrations after painting and prior to unit assembly  .
• The undersealing can only be applied to primed Sheet Metal  .

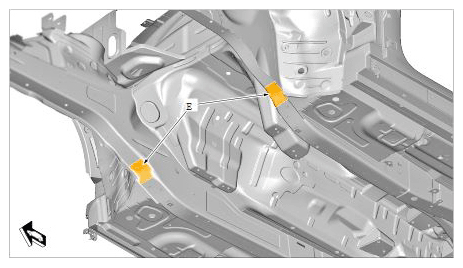

Fig 1: Front Side Member Undersealing Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. E  - Front side member → Layer thickness: 1, 000 μm+300 μm

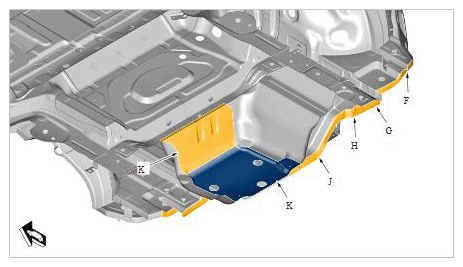

Fig 2: Battery Console/Rear Closing Panel Undersealing Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. F  - Floor section, left & right → Layer thickness: 1, 000 um+300 μm
2. G  - Bracket, left & right → Layer thickness: 1, 000 um+300 μm
3. H  - Rear end section reinforcement, left & right → Layer thickness: 1, 000 μm+300 μm
4. J  - End bracket, left & right → Layer thickness: 1, 000 μm+300 μm
5. K  - Battery console → Layer thickness: 200 μm+200 μm

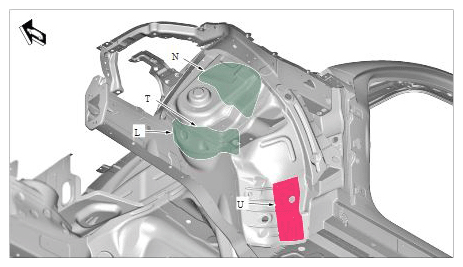

Fig 3: Spring Strut Dome Undersealing Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. L  - Closing element, left & right → Layer thickness: 500 μm+200 μm
2. N  - Reinforcement, left & right → Layer thickness: 500 μm+200 μm
3. T  - Spring strut mount, left & right → Layer thickness: 500 μm200 μm
4. U  - Wheel housing extension → Layer thickness: 500 μm200 μm

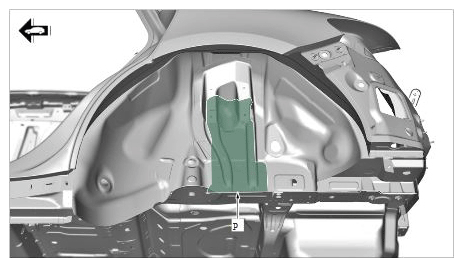

Fig 4: Rear Wheel Housing Undersealing Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. P  - Damper housing → Layer thickness: 500 μm+200 μm

Model year as of 2014, Model year up to 2020
