Seam Seals

Information:  Smooth off seam seal with a spatula after applying it to the marked are as.

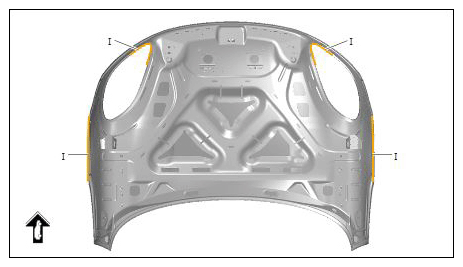

1. Coat area -I-  with body sealant.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front flap

   Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

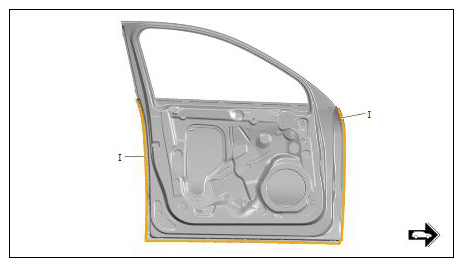

2. Apply body sealing compound in area -I-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front door

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

3. Apply body sealing compound in area -I-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear door

   Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

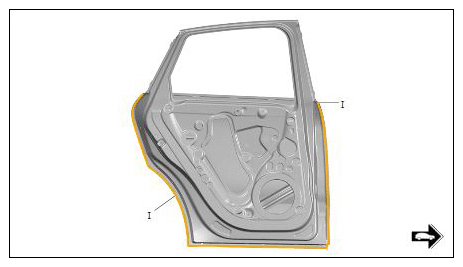

4. Apply body sealing compound in area -I-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

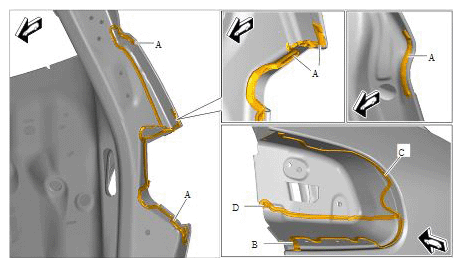

   Door hinges, front & rear

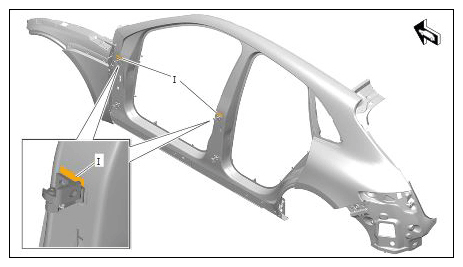

5. Seal fresh cut in area -A-  with body sealing compound.

   Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

   1. 5.1. Apply body sealing compound in area -B;C & D-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear side section

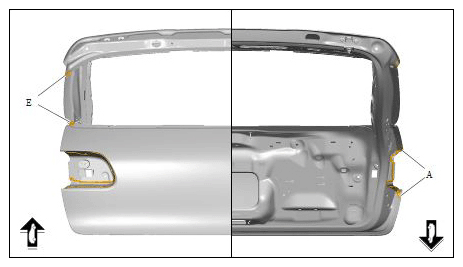

6. Seal fresh cut in area -E-  with body sealant → BODY SEALANT 000.043.303.60 and smooth it off.

   Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

   1. 6.1. Coat area -A-  with body sealant.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Tailgate

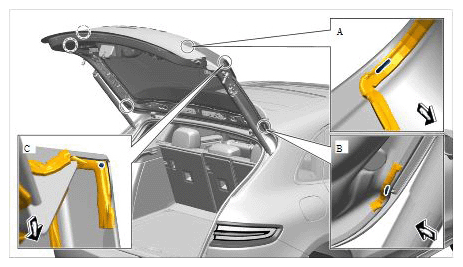

      If the sealing specifications are not observed, there is a higher risk of water leaking in  at the tailgate. The following overview shows the positions on the rear lid -A, B, C-  at which additional sealing measures are required.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Possible problem areas on the rear lid

      Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

7. Coat the areas of the rear lid shown with body sealant → BODY SEALANT 000.043.207.67.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

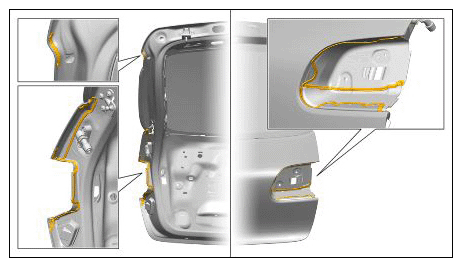

   Diagram showing seam seals on rear lid

   Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

8. Rework the rear lid at certain points on the cut-out for the tail light.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

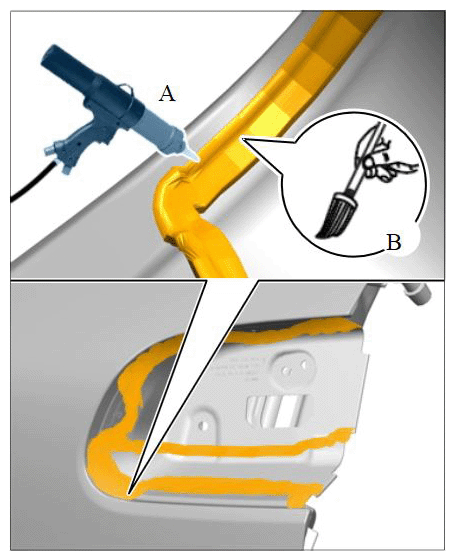

   Applying sealing compound

   1. 8.1. Apply body sealant → BODY SEALANT 000.043.303.60 as shown as an example and spread it out evenly.
   2. 8.2. Spread the body sealant → BODY SEALANT 000.043.303.60 towards the edges in order to guarantee leak-tightness. Smooth out even the smallest holes.
9. A leak test must be carried out on the rear lid after applying the seam seal. To do this, follow the instructions for carrying out the leak test in the document → WE9000 WE90 Workshop campaign -Checking rear lid and reworking it if necessary.

   Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

10. Coat area -I-  with body sealant.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Body front section

11. Area -I-  overlapping emerging adhesive.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front flap hinge area

    Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

12. Apply body sealing compound in area -I-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

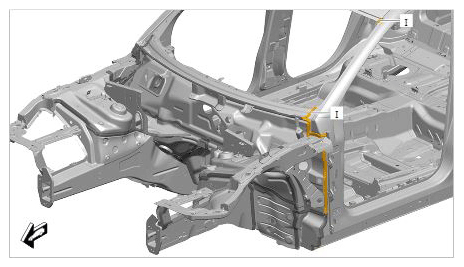

    A-pillar & cowl panel

    Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

13. Apply body sealing compound in area -I-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

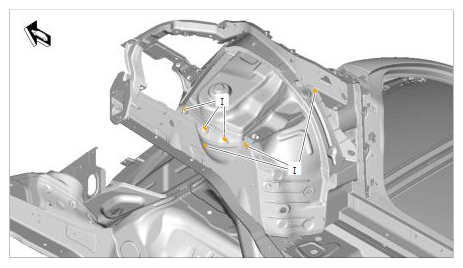

    Front wheel housing

    Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

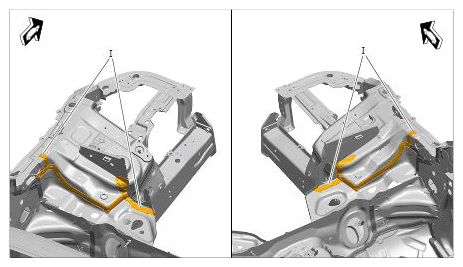

14. Apply body sealing compound in area -I-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

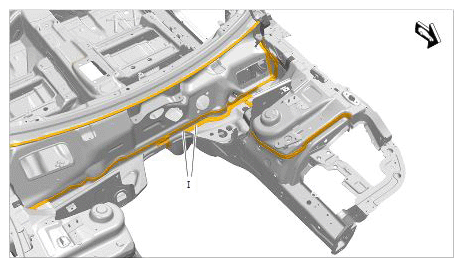

    Front plenum panel area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

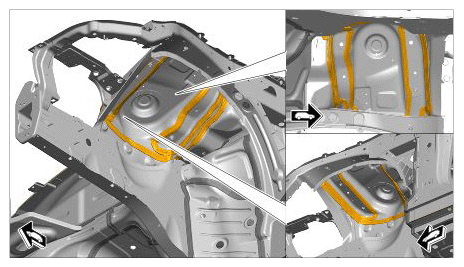

    Front spring strut mount

    Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

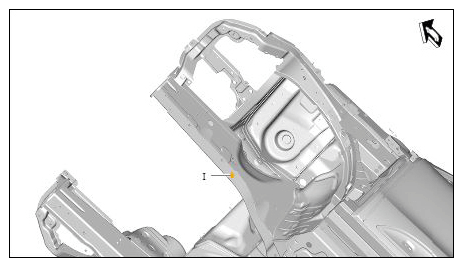

15. Apply body sealing compound in area -I-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front wheel housing, lower

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

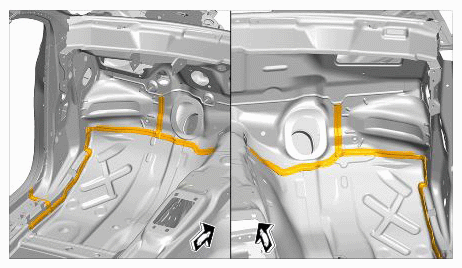

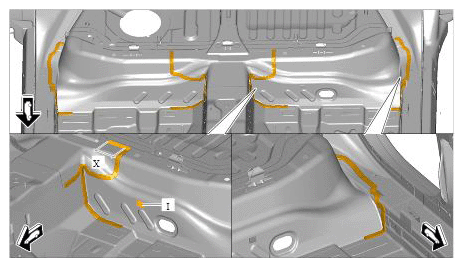

    Inner floorpan

    Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

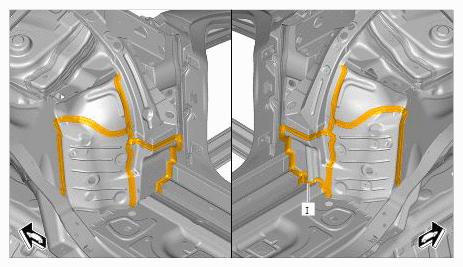

16. Apply body sealing compound in area -I-  .
    1. 16.1. Area -X-  overlapping bonded seam. → Distance: 50 mm

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

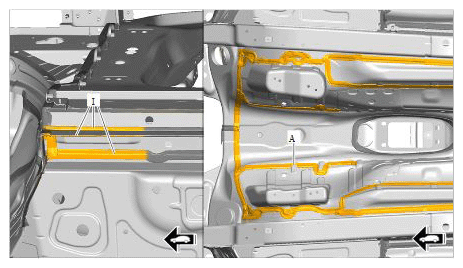

       Inner rear side member & tunnel

17. Seal fresh cut in area -I-  with body sealing compound and smooth off.
    1. 17.1. Area -A-  - visible seam.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

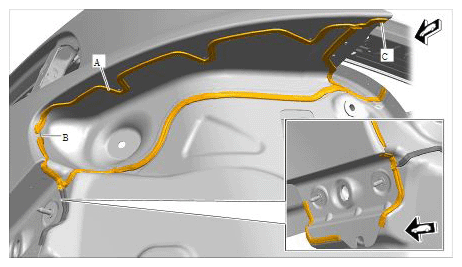

       Rear water drain & tail light mounting

       Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

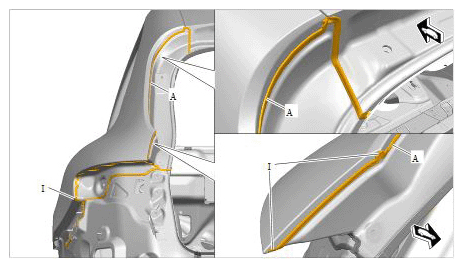

18. Apply body sealing compound in area -A;B-  .
    1. 18.1. Seal fresh cut in area -C-  with body sealing compound and smooth off.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Tail light mounting

19. Seal off drain seams in area -I-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear closing panel

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

20. Apply body sealing compound in area -I-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front side member

21. Keep drain seams clear in area -A-  .

    Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 21.1. Apply body sealing compound in area -I-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

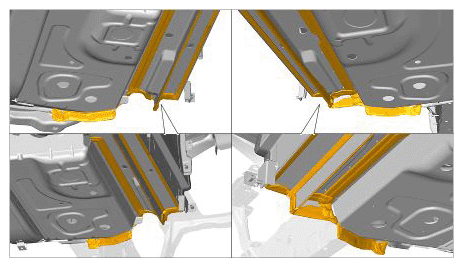

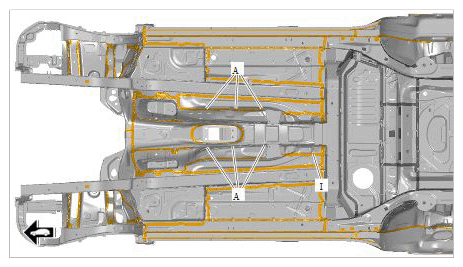

       Underbody

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

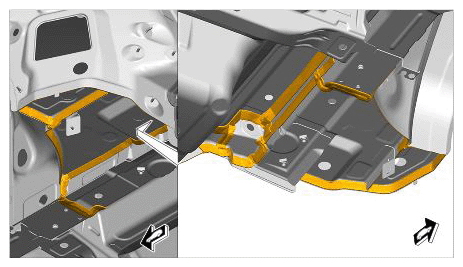

       Side member closing element

22. Keep drain seams clear in area -A-  .

    Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 22.1. Apply body sealing compound in area -I-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

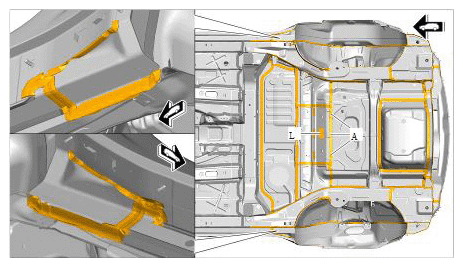

       Front tunnel

23. Close off drain seams in area -A-  .

    Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 23.1. Apply body sealing compound in area -L-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Rear end & rear side member

       Information:  Smooth off seam seal with a spatula after applying it to the marked areas.

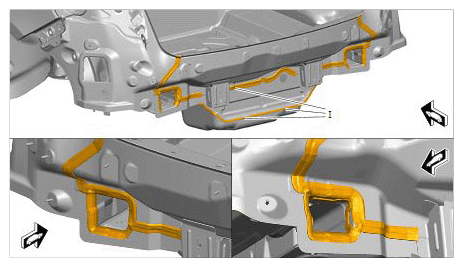

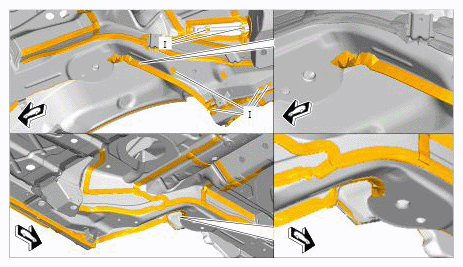

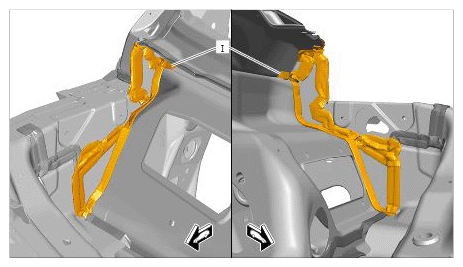

24. Apply body sealing compound in area -I-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear floor/rear side member/rear cross member

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear corner panel/rear side member

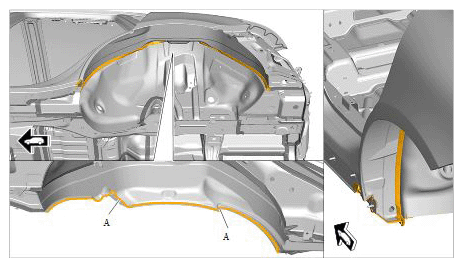

25. Remove body sealing compound in area -A-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

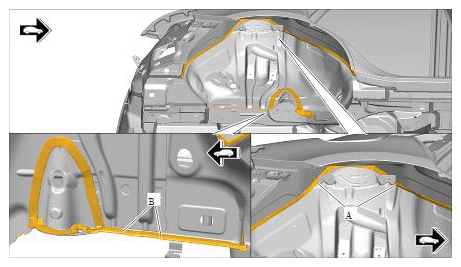

    Rear wheel housing

26. Keep drain seams clear in area -B-  .
    1. 26.1. Area -A-  overlapping bonded seam.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Inner rear wheel housing and rear spring strut mount

Model year as of 2014, Model year up to 2020
