Sealing Elements

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information:

Sealing elements are either bonded or filled with foam filler depending on the repair area .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

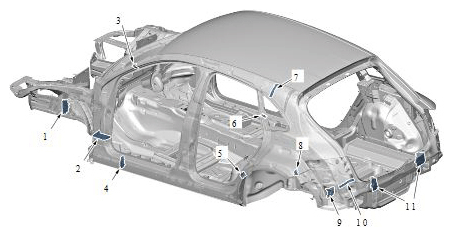

Sealing element for front side member
Sealing element for bottom of A-pillar reinforcement
Sealing element for top of A-pillar reinforcement
Sealing element for side member reinforcement
Sealing element for bottom of C-pillar reinforcement
Sealing element for top of C-pillar reinforcement
Sealing element for roof pillar
Sealing element for rear side section
Sealing element for rear side member
Sealing element for D-pillar reinforcement
Sealing elements for rear end panel

Model year as of 2014, Model year up to 2020
