Preparing Bonding Surfaces: Cleaning

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

To prevent possible grease residue from spreading onto the surface when sanding down the surface until bare at a later stage, clean the bonding surfaces using a lint-free cloth soaked in isopropyl or acetone. Leave cleaned surfaces to dry for 15 minutes.

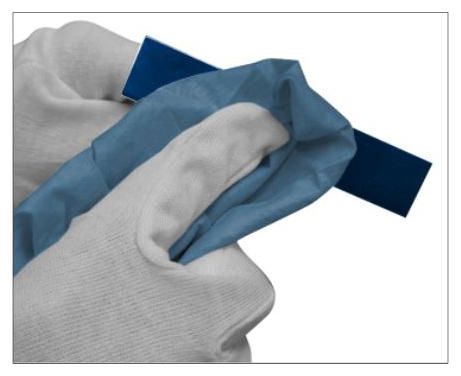

G11977799Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Degreasing bonding surfaces



Then clean the bare bonding flange areas using a lint-free cloth soaked in isopropyl or acetone until there are no more residues on the cloth.

Leave cleaned surfaces to dry off for 15 minutes; the bonding surfaces must be completely dry.

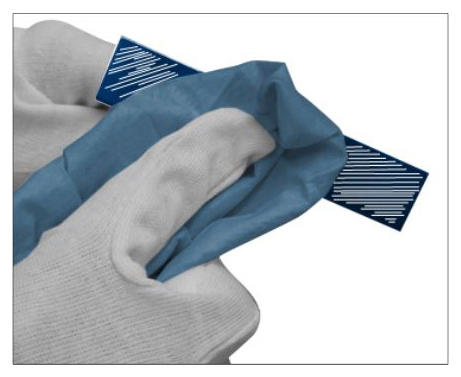

G11977801Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Degreasing bonding surfaces
