Separating Body Components

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

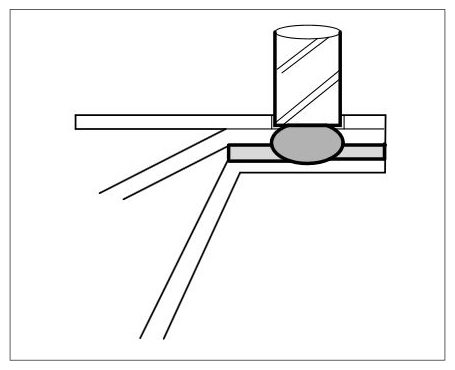

In the case of 3-layer spot-welded panel joints with a hardened bonded layer in which only the outer panel needs to be replaced, drill the outer panel in the area of the spotwelds sufficiently without damaging the spotweld and bonded joint in the second component layer.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separating body components

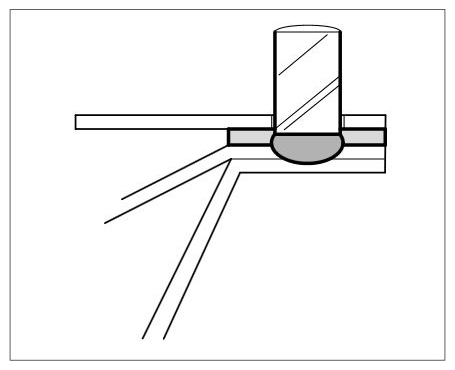

In the case of 3-layer spot-welded panel joints with a hardened bonded layer on the outer panel, drill the outer panel in the area of the spotwelds sufficiently without damaging the spotweld in the second component layer.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separating bonded body components

After removing the loosened body part, old adhesive must be removed and any uneven spots must be sanded down.

The flange area must then be pre-treated for bonding.
