Technical values -66- Rear-view mirror

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

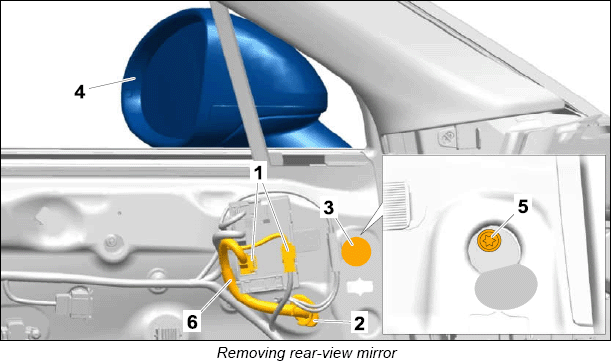

Screw → Tightening torque: 1.4 Nm (1 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

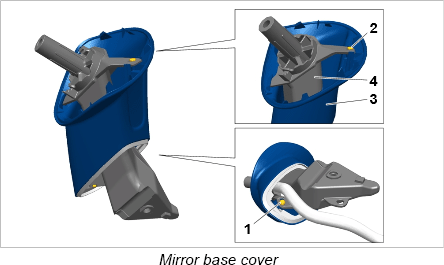

1 - Screw → Tightening torque: 20 Nm (15 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

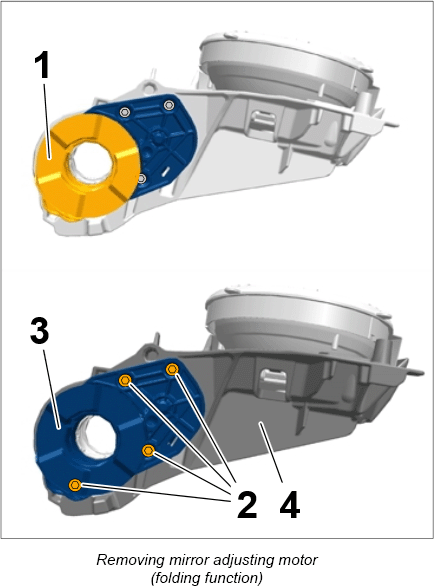

1, 2 - Screw → Tightening torque: 0.9 Nm (0.5 ft lb.)

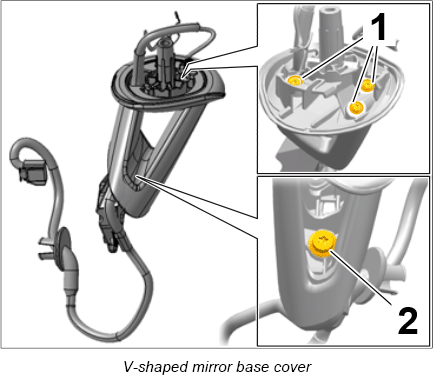

1	Screws → Tightening torque: 5 Nm (3.5 ft. lb.)+/-0.1 Nm (+/-0.1 ft. lb.)
2	Screw → Tightening torque: 20 Nm (15 ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

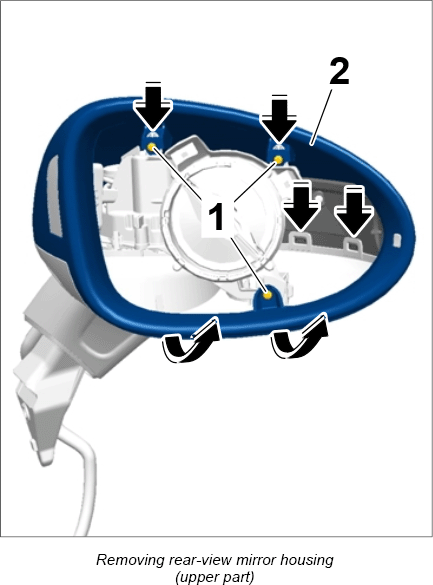

2 - Screw → Tightening torque: 1.7 Nm (1.5 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

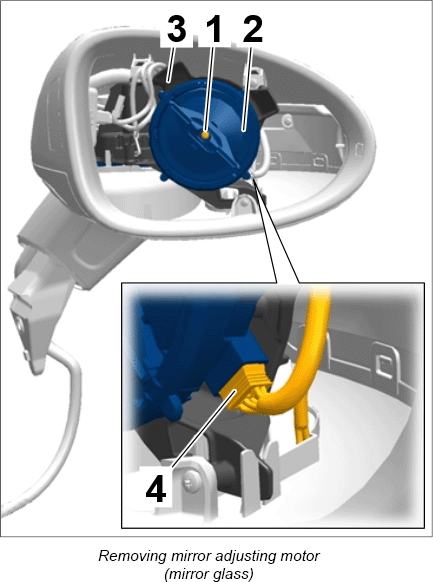

1 - Screw → Tightening torque: 1.4 Nm (1 ft lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

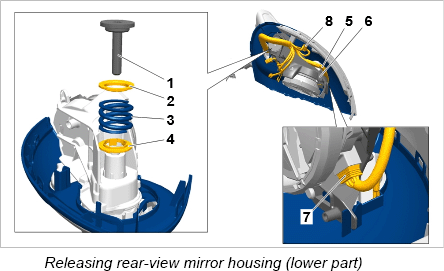

5 - Screw → Tightening torque: 23 Nm (17 ft lb.)
