Technical values -66- Rear wheel covers

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Description	Type	Basic value
Wheel cover to rear apron	Tapping screw	Tightening torque	2 Nm (1.5 ft. lb.)

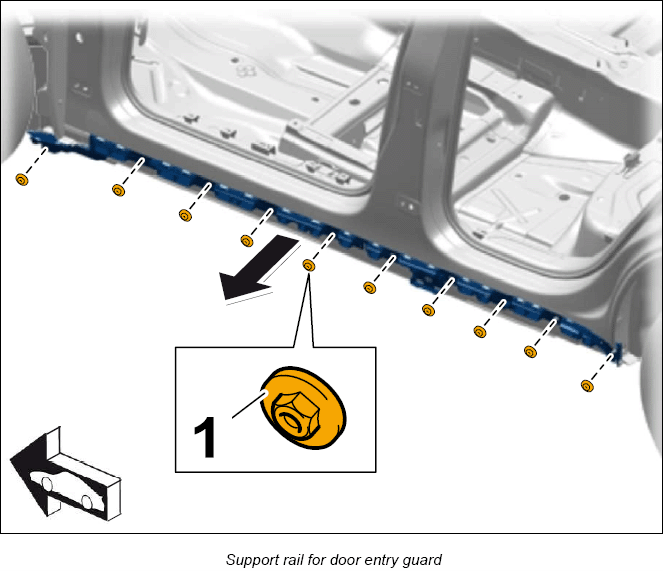

Fastening nut on door entry guard bracket	Item 1	Tightening torque	6 Nm (4.5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

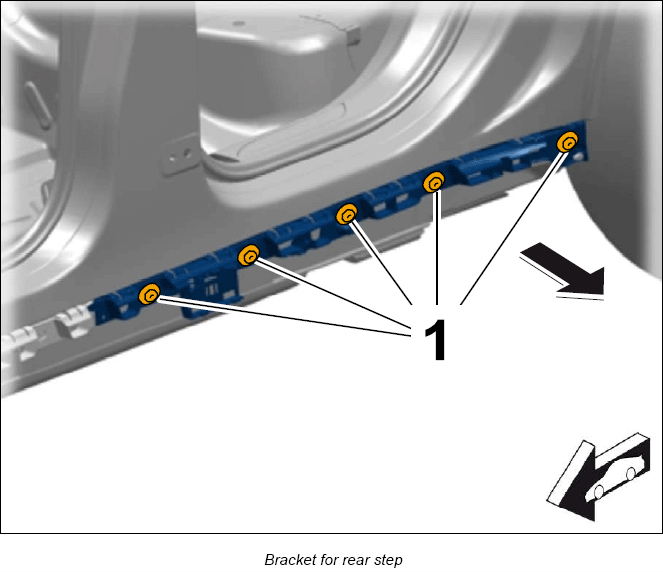

Fastening nut on bracket for rear step	Item 1	Tightening torque	6 Nm (4.5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

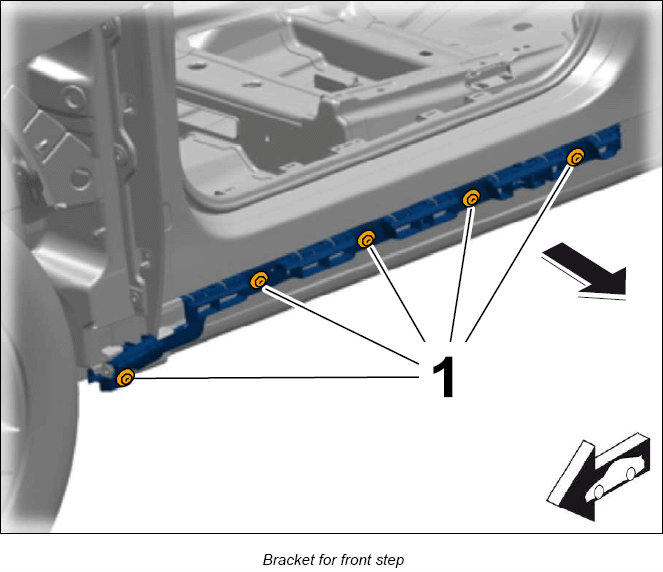

Fastening nut on bracket for front step	Item 1	Tightening torque	6 Nm (4.5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

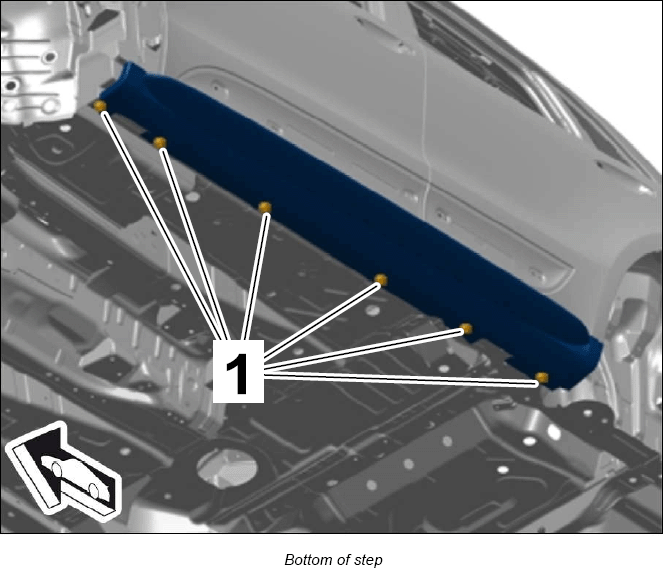

Fastening screw securing step to underbody	Item 1	Tightening torque	2.5 Nm (2 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

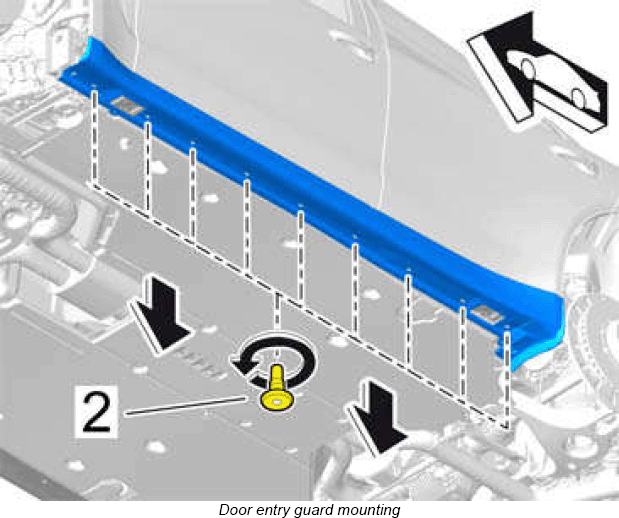

Fastening screws for door entry guard		Tightening torque	2.5 Nm (2 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
