Technical values -64- Glazing, window control

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Description	Type	Basic value
Rear power window motor to rear door	Internal Torx screw, Ø 5 x 22	Tightening torque	3.3 Nm (2 ft. lb.)
Front power window motor to front door	Internal Torx screw, Ø 5 x 22	Tightening torque	3.3 Nm (2 ft. lb.)

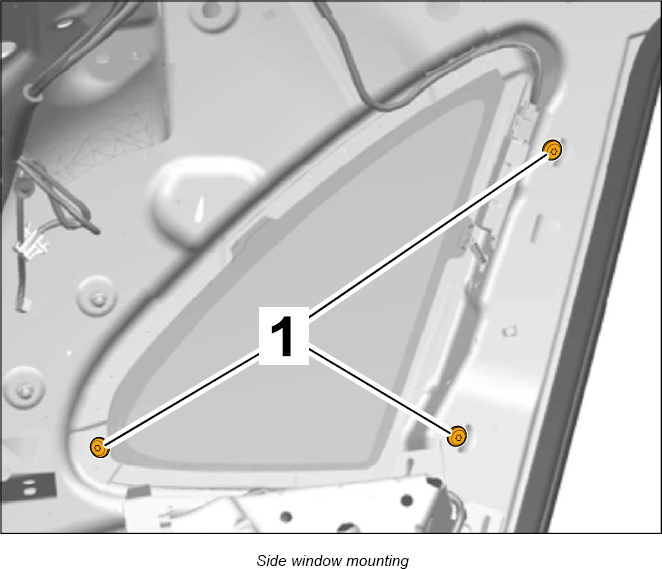

Fastening nut for side window		Tightening torque	6 Nm (4.5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

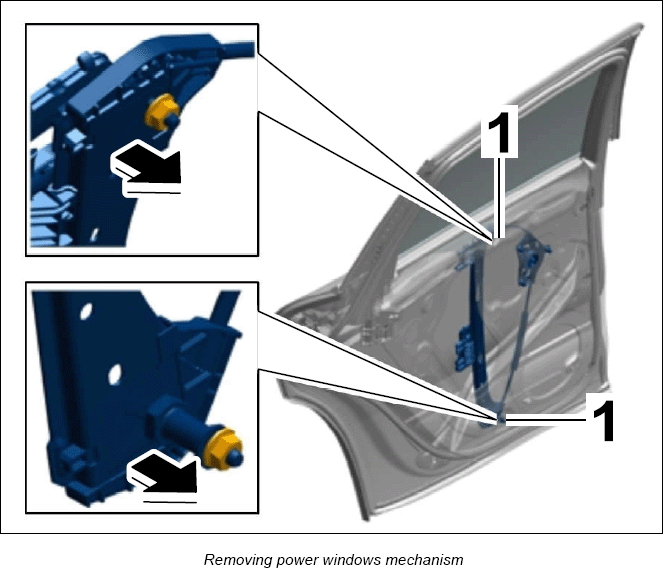

Fastening nut for power windows		Tightening torque	7.5 Nm (5.5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

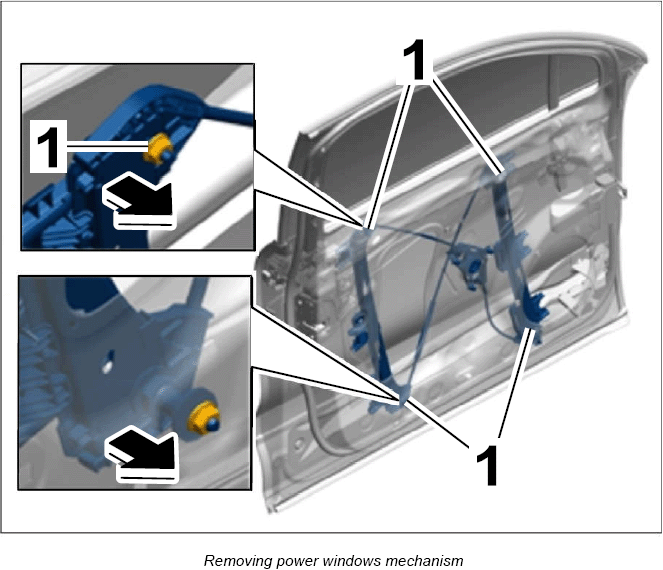

Fastening nut for rear window lifter		Tightening torque	7.5 Nm (5.5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
