Technical values -63- Rear apron

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3	Screw → Tightening torque: 2 Nm (1.5 ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

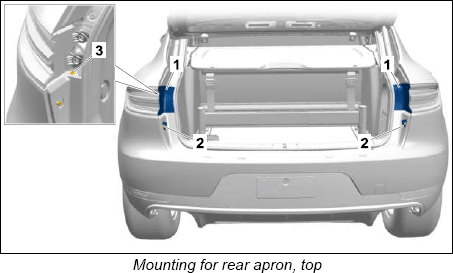

1	Screw → Tightening torque: 2 Nm (1.5 ft. lb.)
2	Screw → Tightening torque: 10 Nm (7.5 ft. lb.)

TORQUE SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

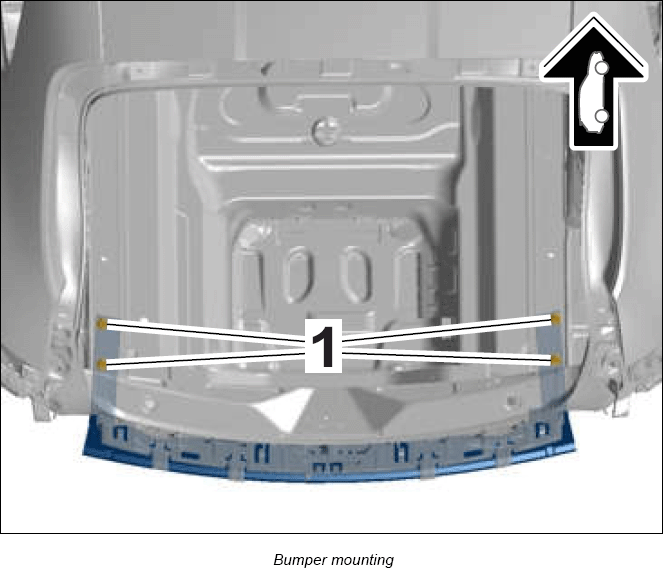

Fastening screws securing bumper to body	Item 1	Tightening torque	40 Nm (30 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
