Technical values - rear seat belt system

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Description	Type	Basic value

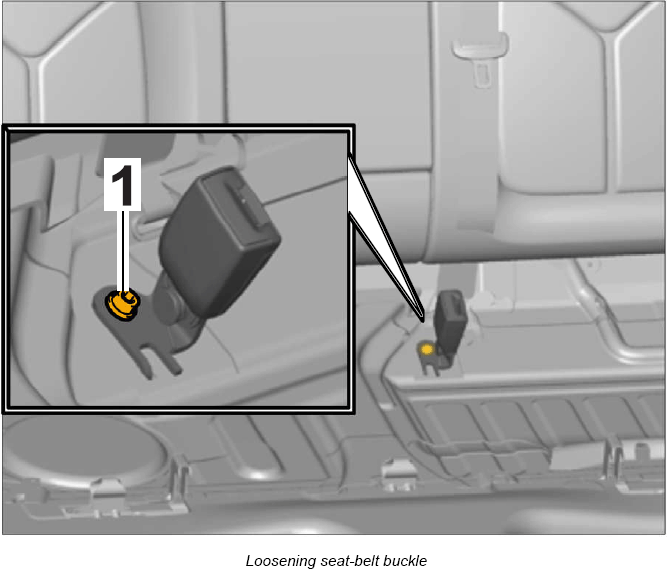

Fastening screw for rear belt lock		Tightening torque	50 Nm (37 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

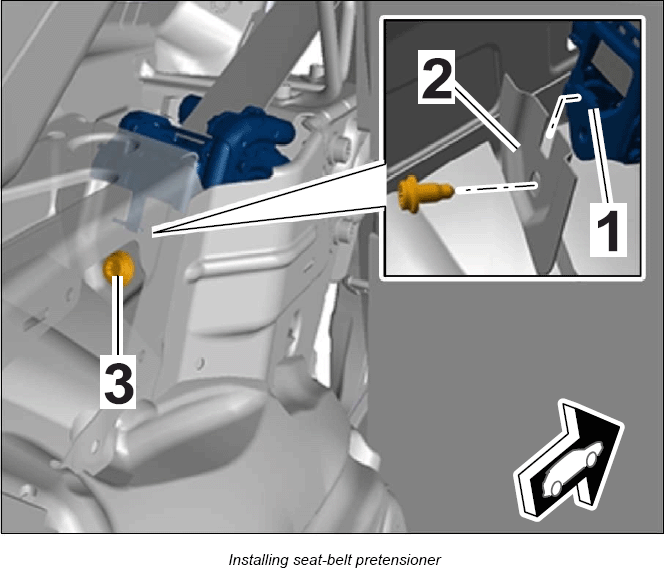

Fastening screw securing seat-belt pretensioner to bodyshell	Item 3	Tightening torque	50 Nm (37 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

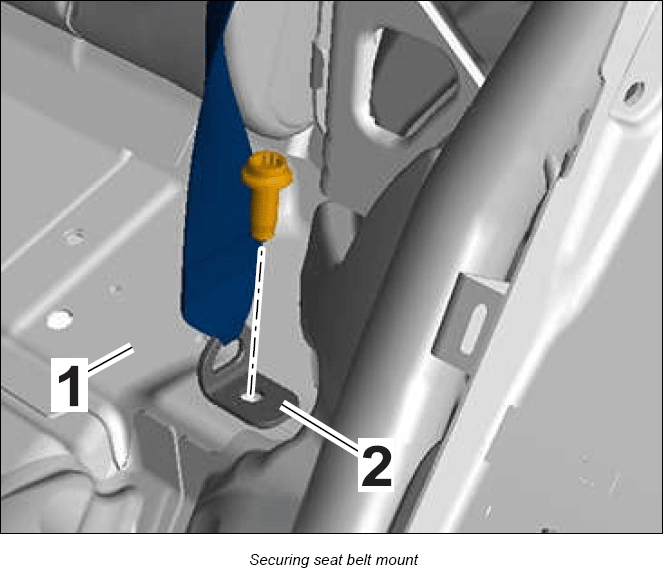

Fastening screw securing seat belt mount to bodyshell		Tightening torque	50 Nm (37 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

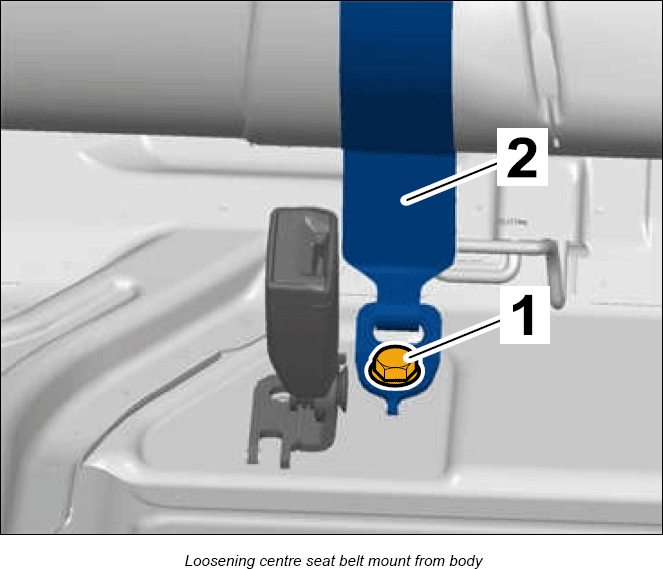

Fastening screw securing centre rear seat belt mount to body	Item 1	Tightening torque	55 Nm (41 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

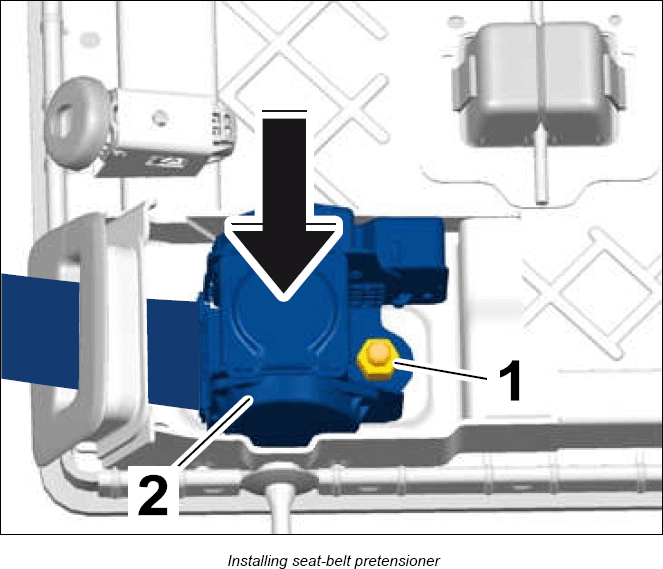

Fastening nut for centre rear seat-belt pretensioner	Item 1	Tightening torque	50 Nm (37 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
