Technical values - front seat belt system

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Description	Type	Basic value

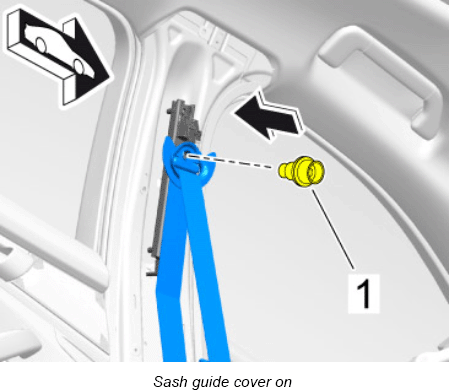

Fastening screw securing sash guide cover to adjustment fitting		Tightening torque	50 Nm (37 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

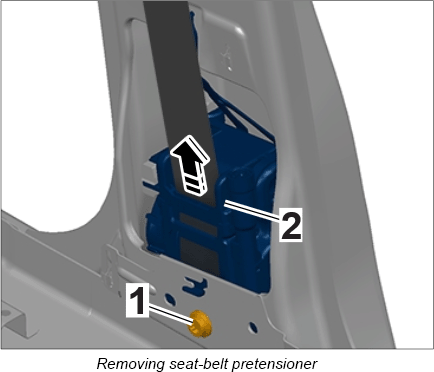

Fastening screw securing seat-belt pretensioner to B-pillar	Item 1	Tightening torque	50 Nm (37 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

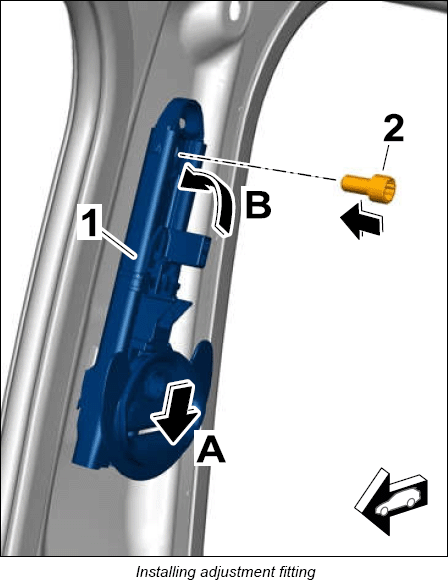

Fastening screw securing adjustment fitting to B-pillar	Item 2	Tightening torque	22 Nm (16 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

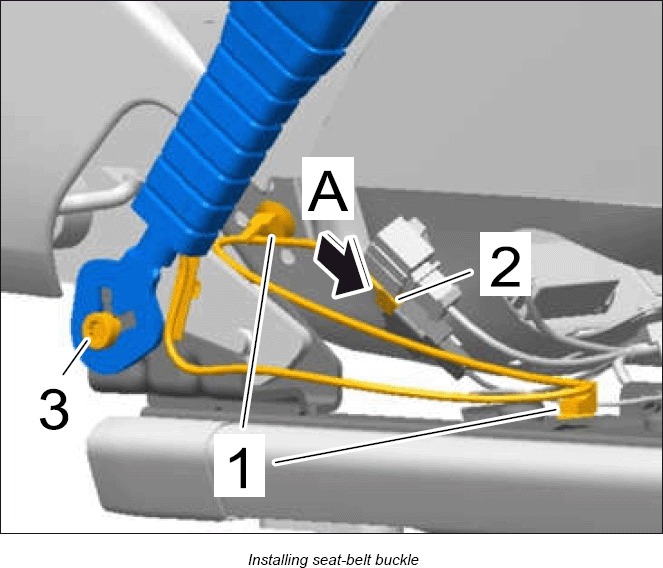

Fastening screw securing front seatbelt buckle to seat	Item 3	Tightening torque	50 Nm (37 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

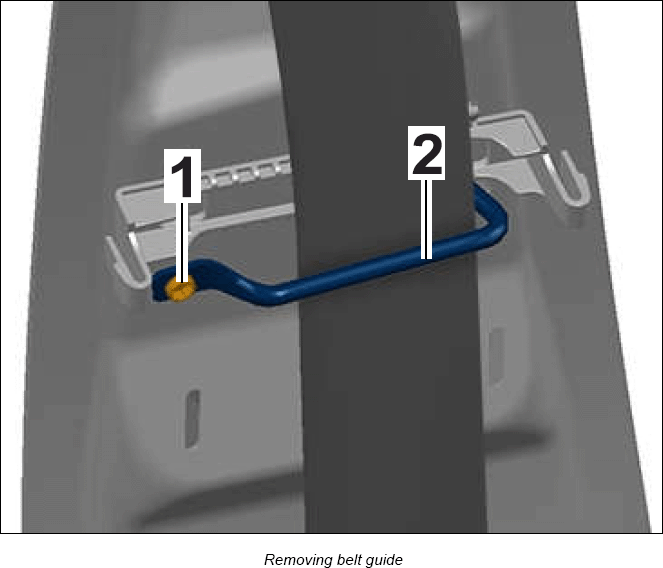

Fastening screw securing belt guide to B-pillar	Item 1	Tightening torque	4.5 Nm (3 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
