Technical values: Overview

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Glass sliding roof motor to glass sliding roof frame Internal Torx screw, M5 x 28, replace Tightening torque 2 Nm (1.5 ft. lb.)
Sun blind motor to glass sliding roof frame Internal Torx screw, M5 x 28, replace Tightening torque 2 Nm (1.5 ft. lb.)

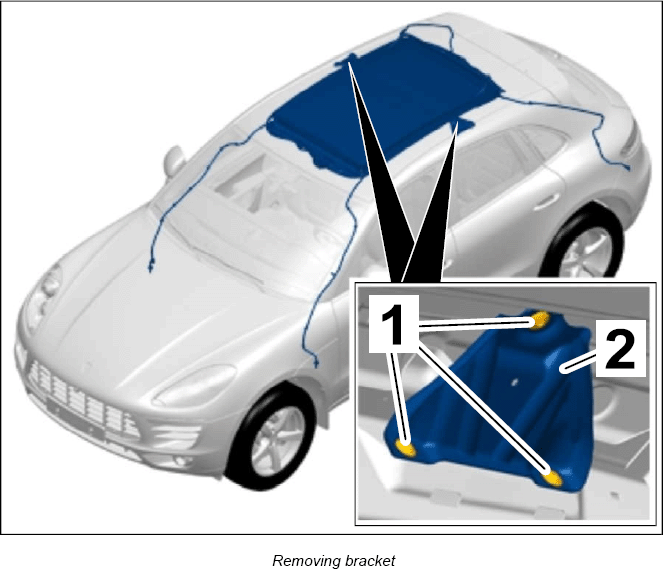

Fastening screw for bracket   Tightening torque 8 Nm (6 ft. lb.)
G12835313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

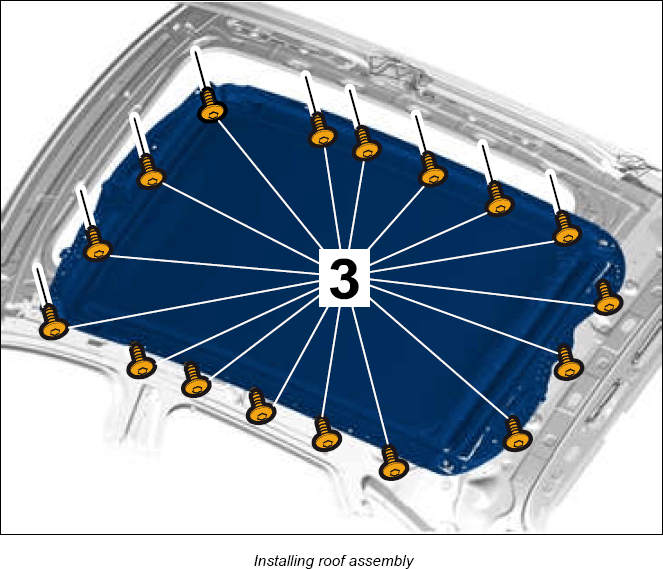

Fastening screws for roof assembly Observe specified tightening sequence Tightening torque 8 Nm (6 ft. lb.)
G12835314Courtesy of PORSCHE CARS NORTH AMERICA, INC.

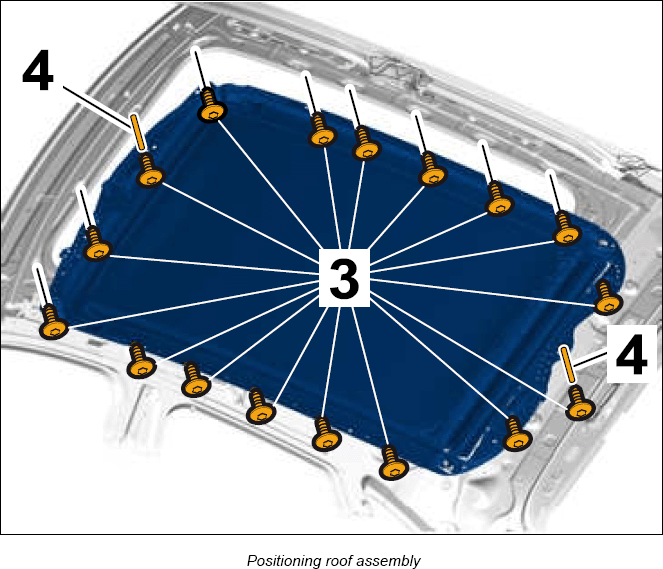

Installing roof assembly
Securing roof assembly to body   Diameter 10 mm
G12835315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

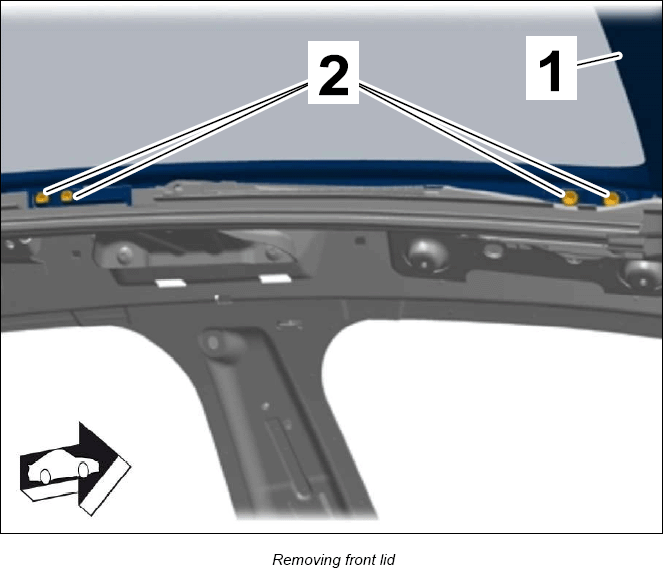

Fastening screw for sliding roof panel   Tightening torque 7 Nm (5 ft. lb.)
G12835316Courtesy of PORSCHE CARS NORTH AMERICA, INC.

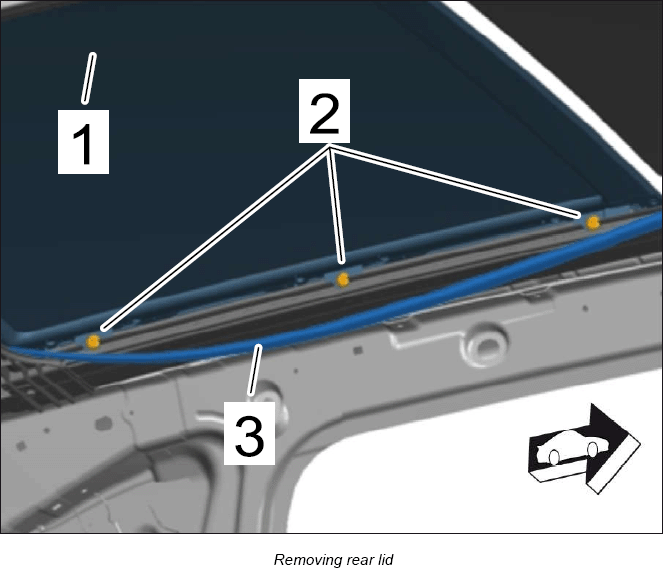

Fastening screw for rear sliding-roof panel   Tightening torque 7 Nm (5 ft. lb.)
G12835317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

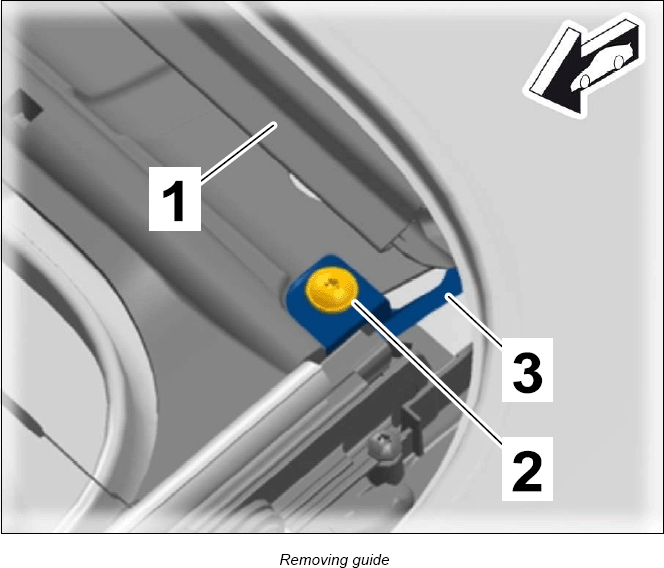

Fastening screw for roll-up sunblind   Tightening torque 2.5 Nm (1.75 ft. lb.)
G12835318Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front apron to inner lock carrier   Tightening torque 8 Nm (6 ft. lb.)
Front apron to outer lock carrier   Tightening torque 8 Nm (6 ft. lb.)
Front apron to front retaining strip   Tightening torque 2 Nm (1.5 ft. lb.)
Front apron to lower lock carrier   Tightening torque 2 Nm (1.5 ft. lb.)
Front apron to side lock carrier   Tightening torque 2 Nm (1.5 ft. lb.)
Rear panel to underbody Item 1 Tightening torque 2 Nm (1.5 ft. lb.)
Rear apron to rear retaining strip Item 1 Tightening torque 2 Nm (1.5 ft. lb.)
Rear apron to wing Item 2 Tightening torque 2 Nm (1.5 ft. lb.)
Guide pin for tailgate Item 2 Tightening torque 10 Nm (7.5 ft. lb.)

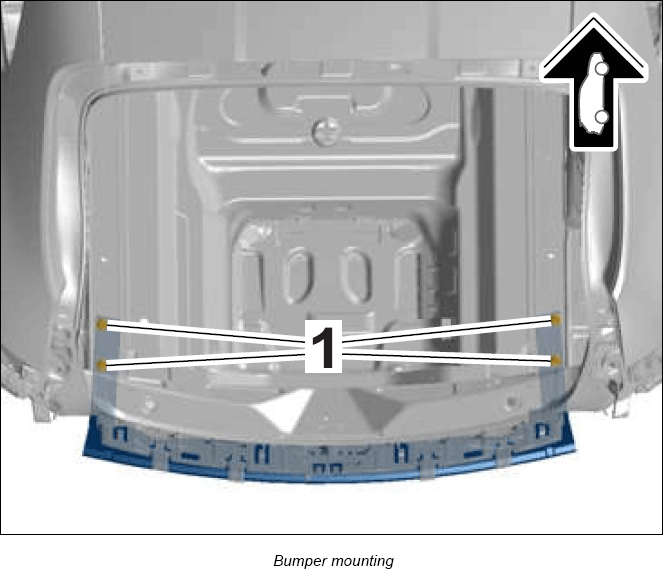

Fastening screws securing bumper to body Item 1 Tightening torque 40 Nm (30 ft. lb.)
G12835319Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Retaining strip to lock carrier Screw Tightening torque 9.7 Nm (7.5 ft. lb.)
Retaining strip to lock carrier Screw Tightening torque 9.7 Nm (7.5 ft. lb.)
Retaining strip to body Collar nut Tightening torque 9.7 Nm (7.5 ft. lb.)
Retaining strip to body Collar nut Tightening torque 9.7 Nm (7.5 ft. lb.)
Bumper to front carrier   Tightening torque 20 Nm (15 ft. lb.)
Carrier to body Tapping screw Tightening torque 4.5 Nm (3.25 ft. lb.)
Carrier to body   Tightening torque 55 Nm (41 ft. lb.)
Rear power window motor to rear door Internal Torx screw, Ø 5 x 22 Tightening torque 3.3 Nm (2 ft. lb.)
Front power window motor to front door Internal Torx screw, Ø 5 x 22 Tightening torque 3.3 Nm (2 ft. lb.)

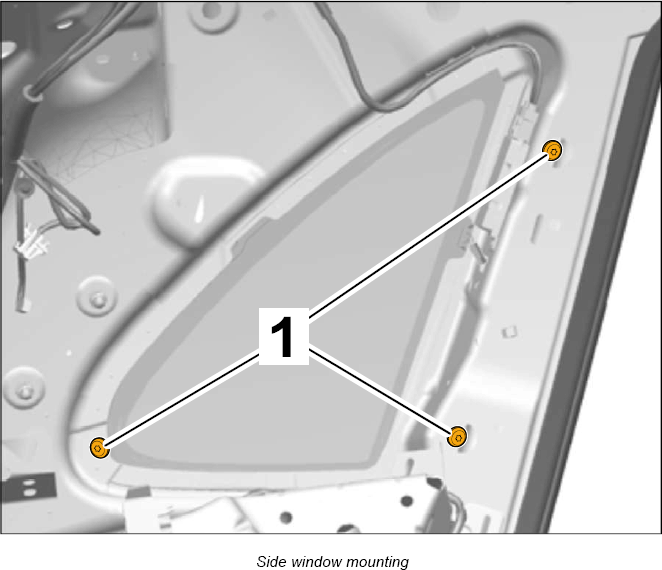

Fastening nut for side window   Tightening torque 6 Nm (4.5 ft. lb.)
G12835320Courtesy of PORSCHE CARS NORTH AMERICA, INC.

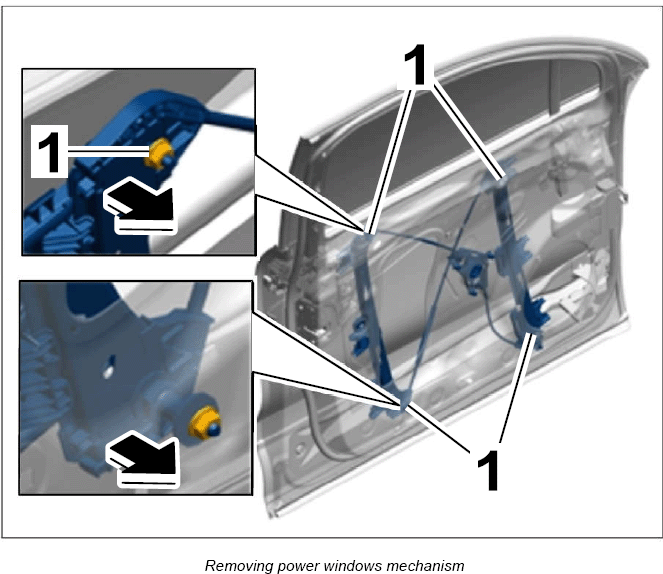

Fastening nut for power windows   Tightening torque 7.5 Nm (5.5 ft. lb.)
G12835321Courtesy of PORSCHE CARS NORTH AMERICA, INC.

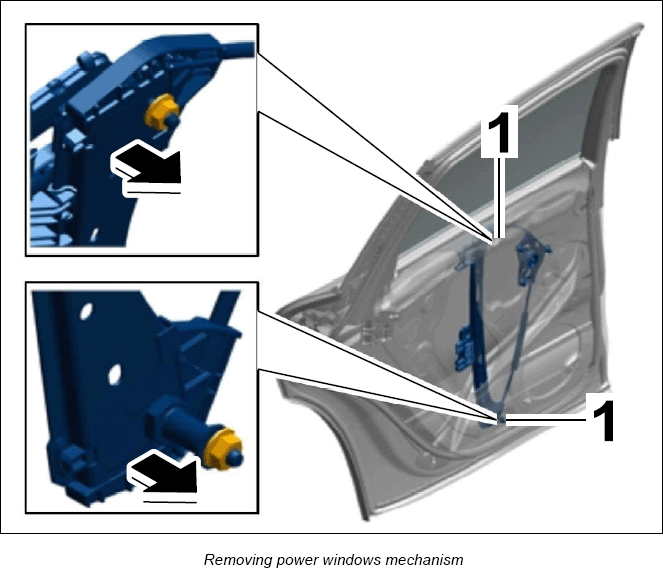

Fastening nut for rear window lifter   Tightening torque 7.5 Nm (5.5 ft. lb.)
G12835322Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screw for rear spoiler Item 3 Tightening torque 6 Nm (4.5 ft. lb.)
G12835323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

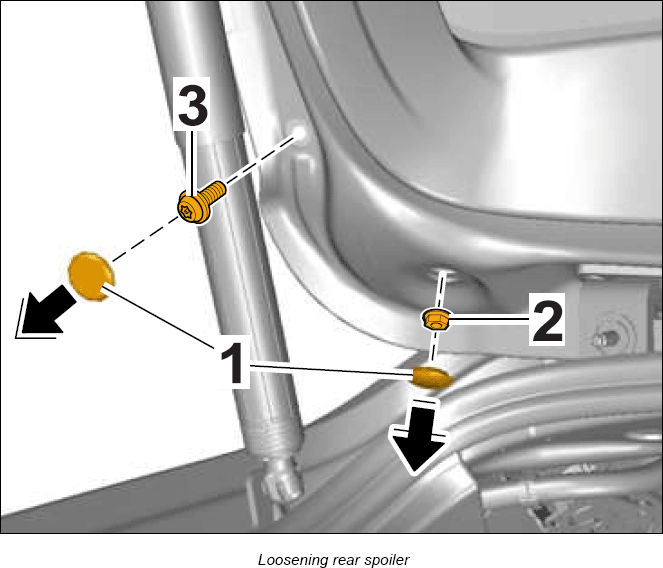

Fastening nut for rear spoiler Item 2 Tightening torque 6 Nm (4.5 ft. lb.)
G12835324Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Wheel cover to rear apron Tapping screw Tightening torque 2 Nm (1.5 ft. lb.)

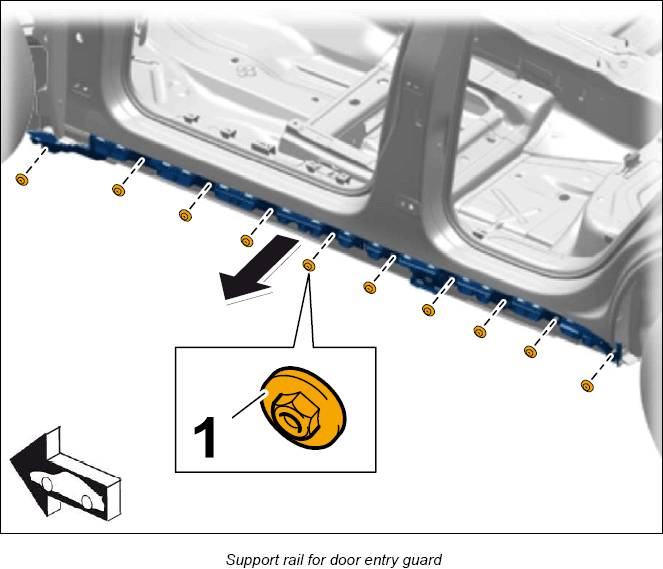

Fastening nut on door entry guard bracket Item 1 Tightening torque 6 Nm (4.5 ft. lb.)
G12835325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

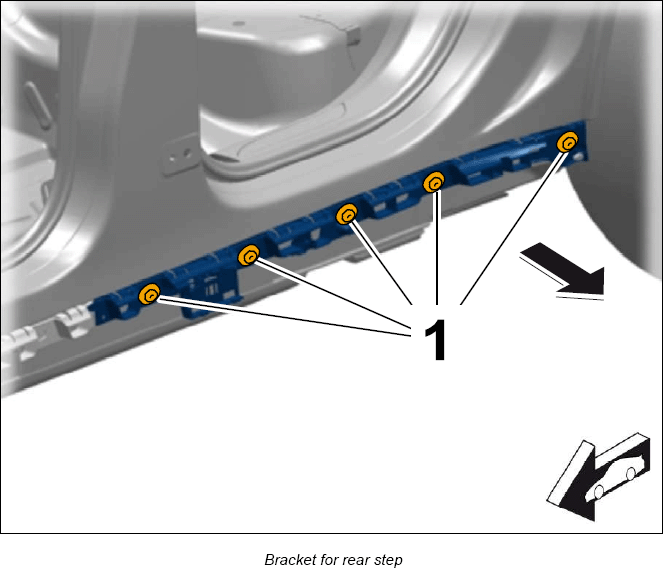

Fastening nut on bracket for rear step Item 1 Tightening torque 6 Nm (4.5 ft. lb.)
G12835326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

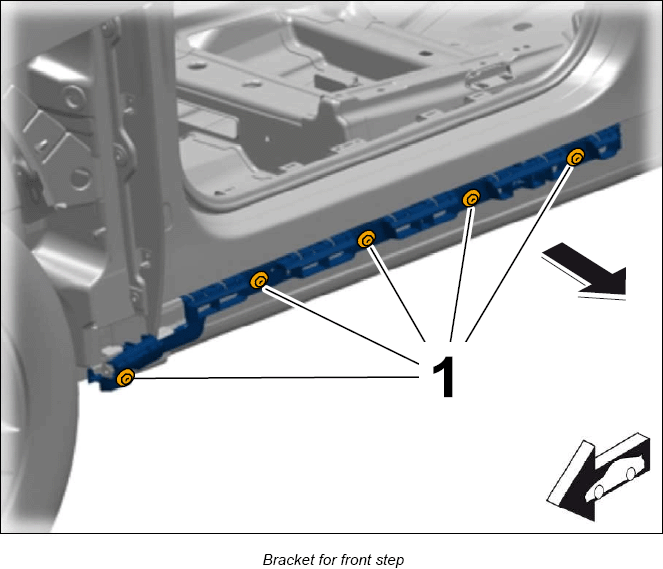

Fastening nut on bracket for front step Item 1 Tightening torque 6 Nm (4.5 ft. lb.)
G12835327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

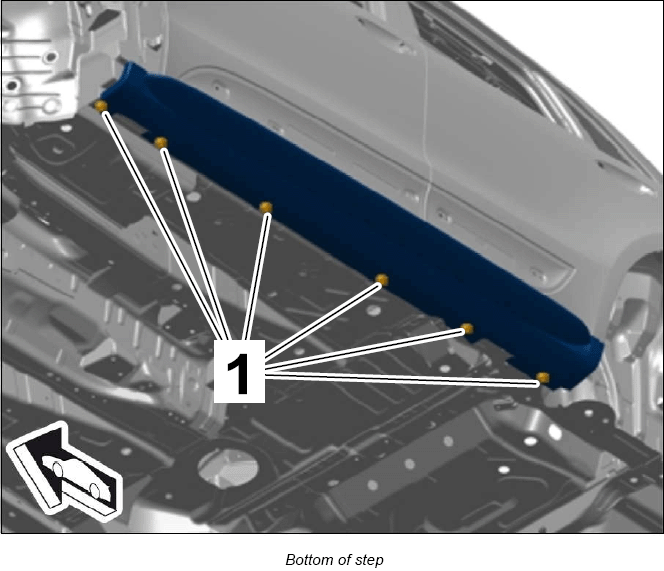

Fastening screw securing step to underbody Item 1 Tightening torque 2.5 Nm (2 ft. lb.)
G12835328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

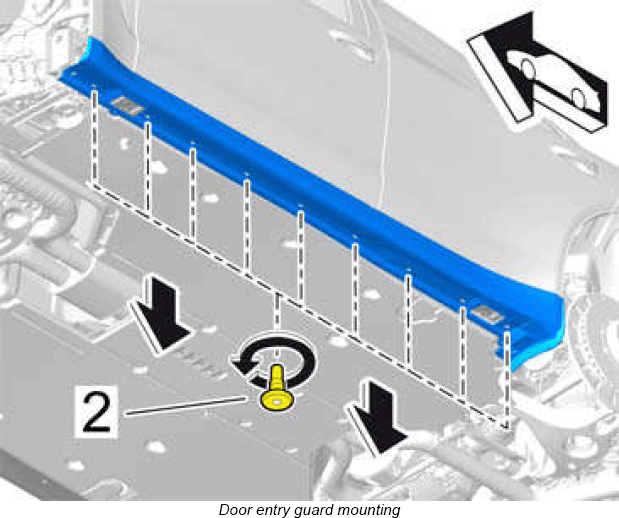

Fastening screws for door entry guard   Tightening torque 2.5 Nm (2 ft. lb.)
G12835329Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Upper part of housing to bracket   Tightening torque 1.4 Nm (1 ft. lb.)
Bracket to mirror base   Tightening torque 20 Nm (15 ft. lb.)
Cover to mirror base   Tightening torque 0.9 Nm (0.5 ft. lb.)
Rotary plate to cover   Tightening torque 5 Nm (3.5 ft. lb.) +/-0.1 Nm (+/-0.1 ft. lb.)
Cover to mirror base   Tightening torque 20 Nm (15 ft. lb.)
Adjusting motor to bracket   Tightening torque 1.7 Nm (1.5 ft. lb.)
Adjusting motor to bracket   Tightening torque 1.4 Nm (1 ft. lb.)
Rear-view mirror to door   Tightening torque 23 Nm (17 ft. lb.)
Cover to front door Tapping screw Tightening torque 2.5 Nm (2 ft. lb.)
Cover to rear door Tapping screw Tightening torque 2.5 Nm (2 ft. lb.)
Cover to rear of rear door   Tightening torque 2.5 Nm (2 ft. lb.)
Glove compartment to dashboard   Tightening torque 3 Nm (2 ft. lb.)
Grab handle to body   Tightening torque 5.6 Nm (4 ft. lb.)
Front door sill trim to body   Tightening torque 2.5 Nm (2 ft. lb.)
Rear door sill trim to body   Tightening torque 5.6 Nm (4 ft. lb.)
Ashtray to centre console cover   Tightening torque 1.5 Nm (1 ft. lb.)
Trim panel to dashboard   Tightening torque 4 Nm (3 ft. lb.)
Centre console to selector support   Tightening torque 8 Nm (6 ft. lb.)
Centre console to cardan tunnel   Tightening torque 20 Nm (15 ft. lb.)
Threaded connection between oddments tray cover and centre console   Tightening torque 4 Nm (3 ft. lb.)

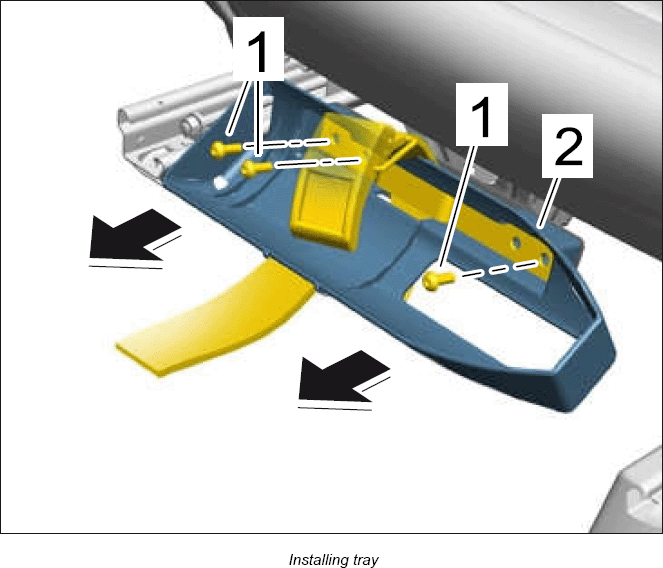

Fastening screw for fire extinguisher holder Item 1 Tightening torque 8 Nm (6 ft. lb.) +/-1 Nm (+/-0.5 ft. lb.)
G12835330Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Sun blind to door panel   Tightening torque 2.3 Nm (1.5 ft. lb.)
Airbag to dashboard   Tightening torque 9 Nm (6.5 ft. lb.)
Airbag bracket to dashboard bracket   Tightening torque 4.5 Nm (3 ft. lb.)
Belt guide clip to body   Tightening torque 20 Nm (15 ft. lb.)
Pedestrian protection to lock carrier, upper Tapping screw Tightening torque 4.5 Nm (3.5 ft. lb.)
Pedestrian protection to lock carrier, lower Tapping screw Tightening torque 3 Nm (2 ft. lb.)
Fastening screws for trailer hitch   Tightening torque 50 Nm (37 ft. lb.)
Fastening screws for trailer hitch   Torque angle 90°

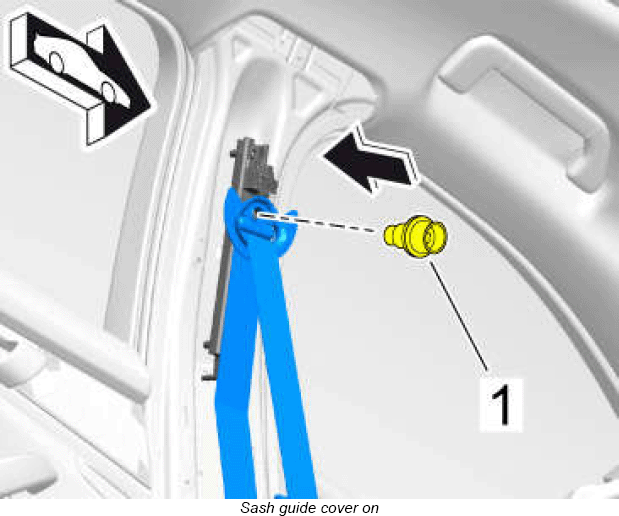

Fastening screw securing sash guide cover to adjustment fitting   Tightening torque 50 Nm (37 ft. lb.)
G12835331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

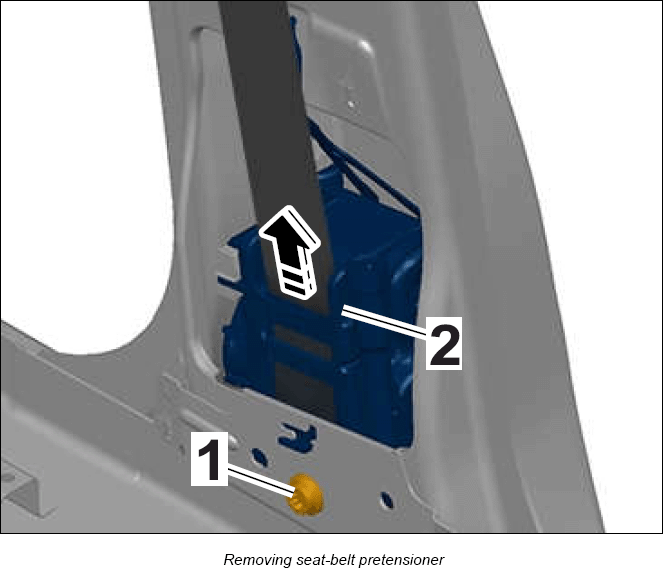

Fastening screw securing seat-belt pretensioner to B-pillar Item 1 Tightening torque 50 Nm (37 ft. lb.)
G12835332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

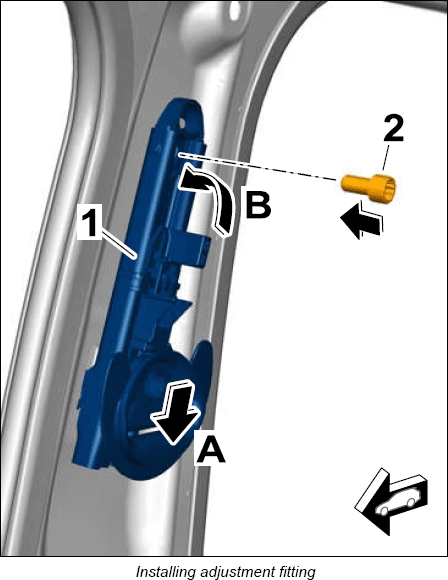

Fastening screw securing adjustment fitting to B-pillar Item 2 Tightening torque 22 Nm (16 ft. lb.)
G12835333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

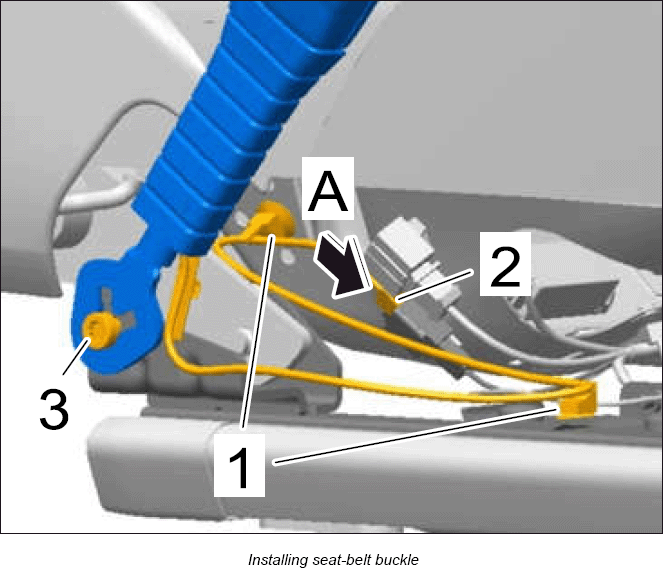

Fastening screw securing front seat-belt buckle to seat Item 3 Tightening torque 50 Nm (37 ft. lb.)
G12835334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

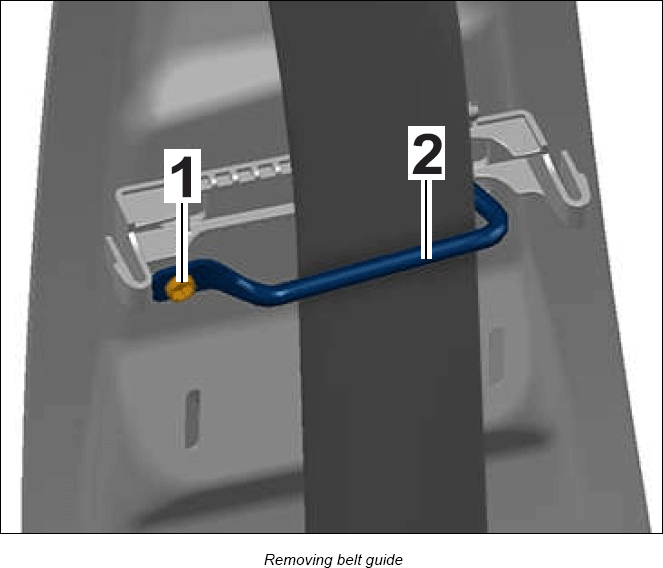

Fastening screw securing belt guide to B-pillar Item 1 Tightening torque 4.5 Nm (3 ft. lb.)
G12835335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

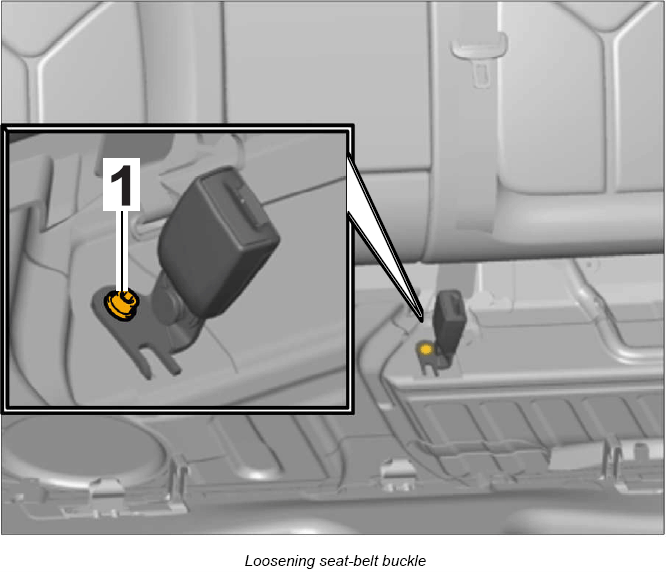

Fastening screw for rear belt lock   Tightening torque 50 Nm (37 ft. lb.)
G12835336Courtesy of PORSCHE CARS NORTH AMERICA, INC.

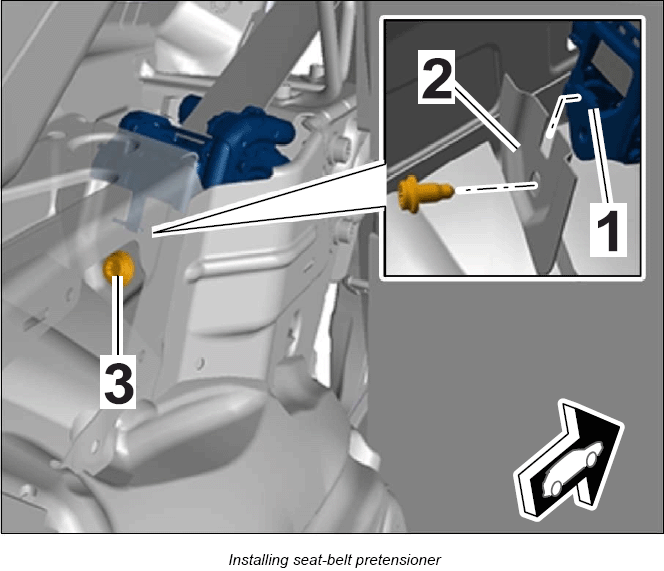

Fastening screw securing seat-belt pretensioner to bodyshell Item 3 Tightening torque 50 Nm (37 ft. lb.)
G12835337Courtesy of PORSCHE CARS NORTH AMERICA, INC.

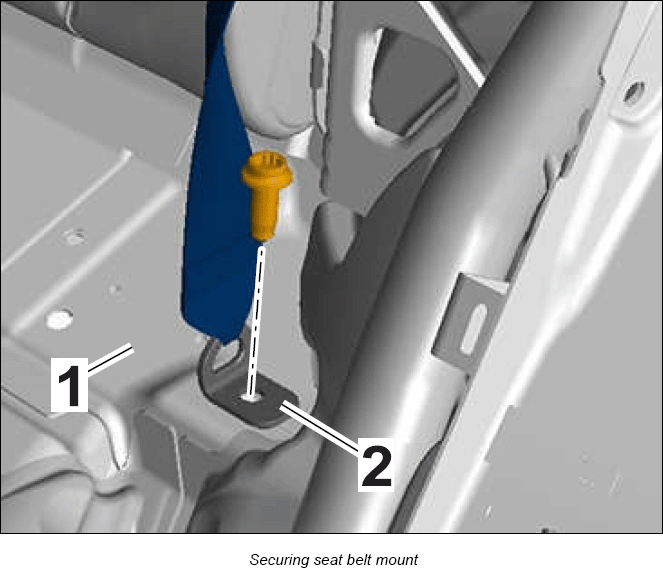

Fastening screw securing seat belt mount to bodyshell   Tightening torque 50 Nm (37 ft. lb.)
G12835338Courtesy of PORSCHE CARS NORTH AMERICA, INC.

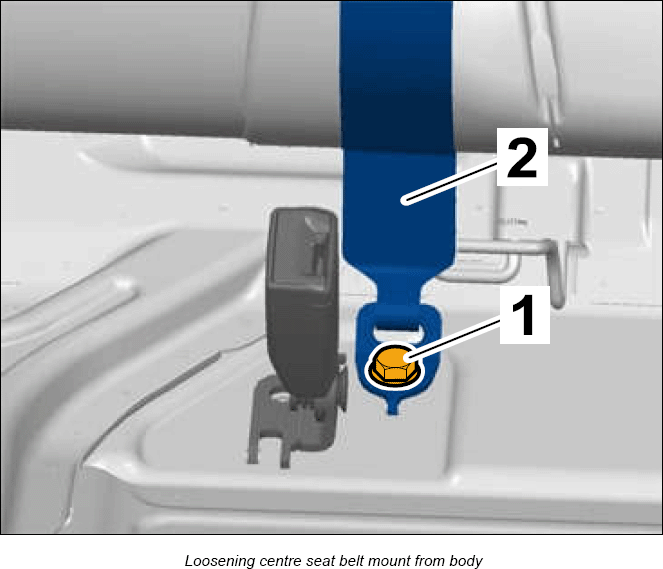

Fastening screw securing centre rear seat belt mount to body Item 1 Tightening torque 55 Nm (41 ft. lb.)
G12835339Courtesy of PORSCHE CARS NORTH AMERICA, INC.

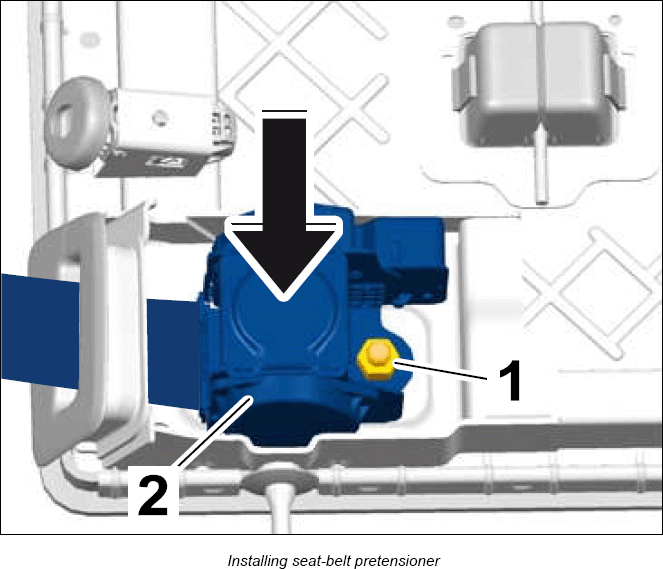

Fastening nut for centre rear seat-belt pretensioner Item 1 Tightening torque 50 Nm (37 ft. lb.)
G12835340Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Centre bearing for sun visor on body   Tightening torque 5 Nm (3.5 ft. lb.)
Fastening screw securing cupholder to oddments tray   Tightening torque 1.5 Nm (1 ft. lb.)
