Technical values -60- Sliding roof, slide/tilt sunroof

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Description	Type	Basic value
Glass sliding roof motor to glass sliding roof frame	Internal Torx screw, M5 x 28, replace	Tightening torque	2 Nm (1.5 ft. lb.)
Sun blind motor to glass sliding roof frame	Internal Torx screw, M5 x 28, replace	Tightening torque	2 Nm (1.5 ft. lb.)

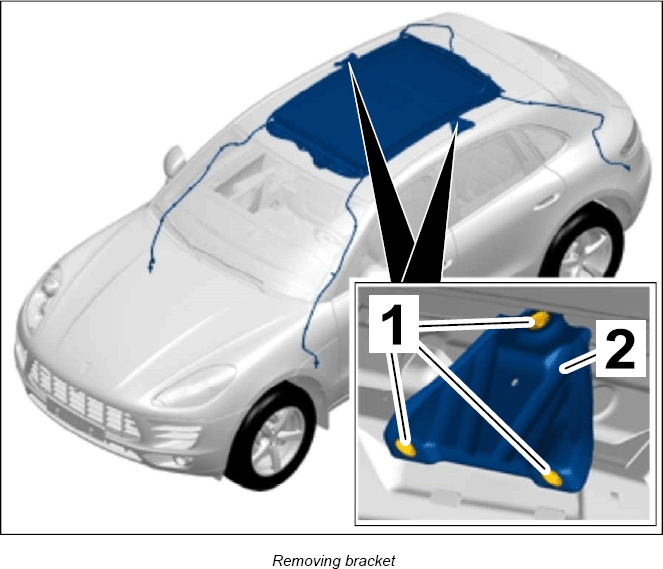

Fastening screw for bracket		Tightening torque	8 Nm (6 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

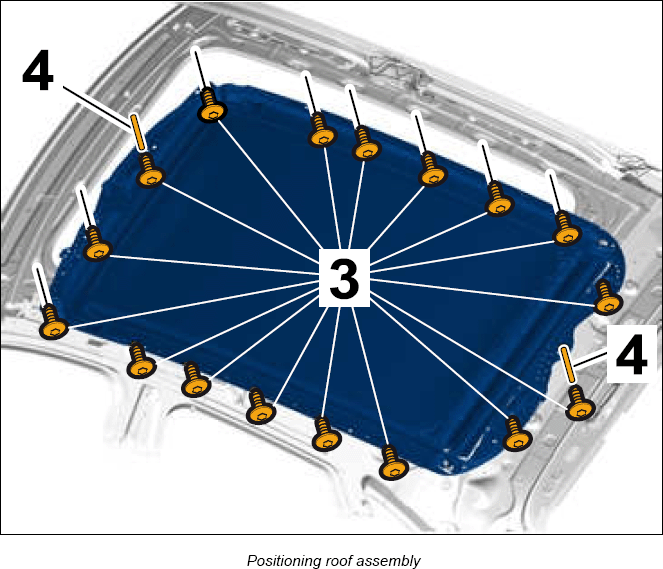

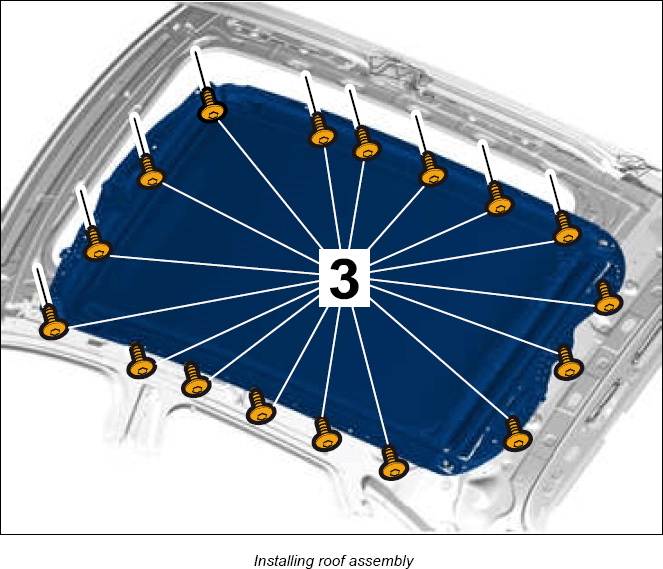

Fastening screws for roof assembly	Observe specified tightening sequence	Tightening torque	8 Nm (6 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Securing roof assembly to body		Diameter	10 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

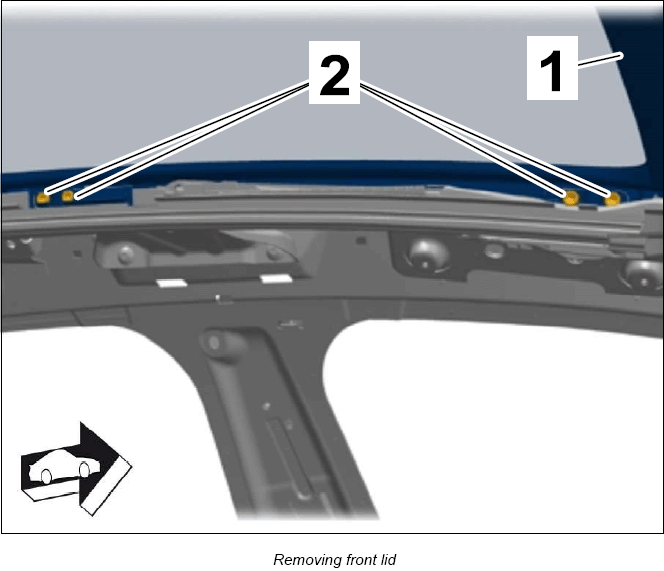

Fastening screw for sliding-roof panel		Tightening torque	7 Nm (5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

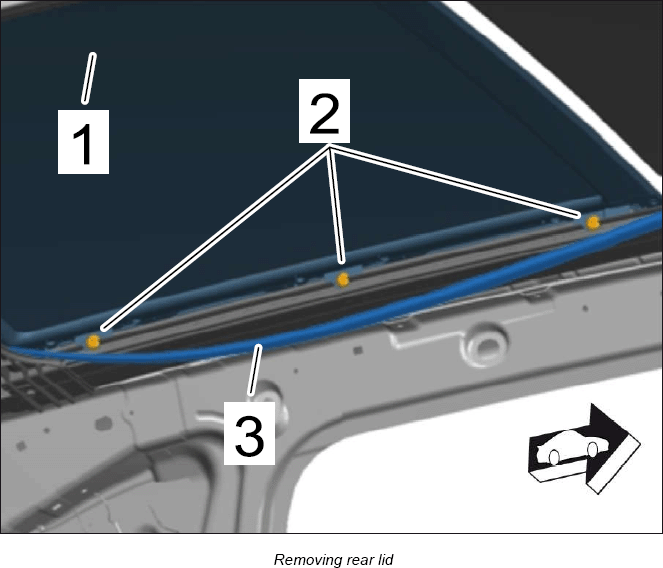

Fastening screw for rear sliding-roof panel		Tightening torque	7 Nm (5 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

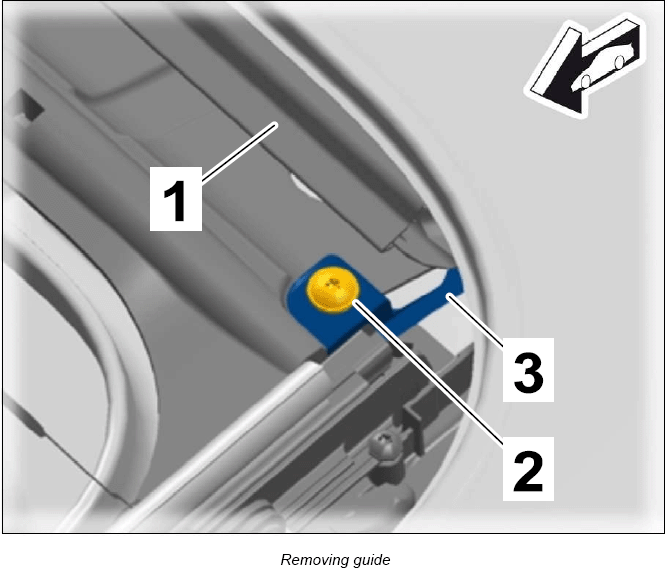

Fastening screw for roll-up sunblind		Tightening torque	2.5 Nm (1.75 ft. lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
