Removing glass with cutting-wire separating device

Information

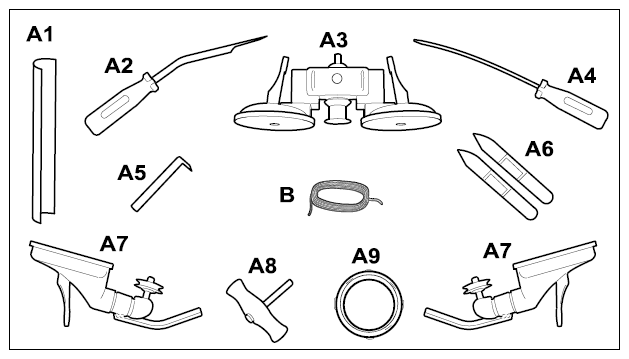

• The following instructions describe the general procedure for removing car windows with the glass separating tool VAG 1474 B  .
• Information on procedures relating to specific vehicles can be obtained from the instructions in the corresponding chapters in the Technical Manual  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• It is generally possible to remove the windscreen with the cutting wire and the optional cutting thread contained in the tool set  .
• In contrast to cutting threads, however, the cutting wire has the following disadvantages:
• Danger of injury when tearing off the cutting wire  .
• Danger of damage to materials on paint surfaces and interior equipment parts  .
• For the reasons outlined above we recommend using the cutting thread  .

→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.

→ When cutting out the windscreen, make sure that the label with the vehicle identification number (VIN) is not damaged.

Information

• In order to guarantee an optimum fastening intake grip, it is advisable to clean the inside of the glass before removal  .

1. Clean inside of glass.

   Information

   • The film protects the dashboard from damage when removing the window glass  .
2. Affix protective film on the dashboard.
   1. 2.1. Select the appropriate film -1-  and insert between windscreen and damping mat.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • To prevent damage, make sure that the vehicle identification number (VIN) is completely masked by the protective film when piercing the adhesive bead  .
3. Insert cutting thread into the passenger compartment.
   1. 3.1. Push through adhesive bead on the glass on the edge of the vehicle identification number -C-  with the awl -A4-  from the inside to the outside.
   2. 3.2. Pass cutting thread -B-  through the eyelet on the awl -A4-  .
   3. 3.3. Pull cutting thread -B-  into the passenger compartment.
   4. 3.4. Pull cutting thread -B-  out of the awl -A4-  .
   5. 3.5. Pull cutting thread -B-  approx. 1 m into the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The cutting thread should be positioned under the rim as far as possible. The sealing lip must be raised slightly in the upper part of the glass in order to pull the cutting thread through  .
4. Insert cutting thread into the gap in the glass.
   1. 4.1. Pull the cutting thread -B-  all the way around in direction of arrow and into the gap between the window and body; use a spatula -A6-  if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

5. Secure cutting thread to the body.
   1. 5.1. Secure the loose end of the cutting thread -B-  at a suitable point on the body using the fastening screw -2-  on a component (e.g. wiper motor fastening screw). Loosen the fastening screw, wind the cutting thread -B-  once around the screw and then tighten the fastening screw again.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Fit cutting thread to the spooling device.
   1. 6.1. Loosen clamping screw -3-  .
   2. 6.2. Insert the cutting thread -B-  into the bore on the spooling device -A3-  .
   3. 6.3. Attach cutting thread -B-  firmly with the clamping screw -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The fastening force can be increased by moistening the fastening intake  .
7. Fit spooling device and deflection rollers on the glass.
   1. 7.1. Position spooling device -A3-  diagonally in the center of the glass.
   2. 7.2. Press spooling device -A3-  firmly against the glass using the suction cups.
   3. 7.3. Secure suction cup onto the glass by moving the actuating lever.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

8. Separate glass as far as P1.
   1. 8.1. Separate glass by spooling the cutting thread on the spooling device as far as point -P1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The fastening force can be increased by moistening the fastening intake  .
9. Reposition spooling device.
   1. 9.1. Release spooling device.
   2. 9.2. Release the lower suction cup on the spooling device.
   3. 9.3. Pull cutting thread through onto the other side of the suction cup.
   4. 9.4. Secure suction cup onto the glass by moving the actuating lever.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The fastening force can be increased by moistening the fastening intake  .
10. Separate glass as far as P2.
    1. 10.1. Position deflection roller in the lower right corner.
    2. 10.2. Press deflection roller with suction cup firmly against the glass.
    3. 10.3. Secure suction cup onto the glass by moving the actuating lever.
    4. 10.4. Pass cutting thread over the deflection roller onto the spooling device.
    5. 10.5. Separate glass by spooling the cutting thread on the spooling device as far as point -P2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • The fastening force can be increased by moistening the fastening intake  .
11. Separate glass as far as P3.
    1. 11.1. Release spooling device.
    2. 11.2. Position deflection roller in the upper right corner.
    3. 11.3. Press deflection roller with suction cup firmly against the glass.
    4. 11.4. Secure suction cup onto the glass by moving the actuating lever.
    5. 11.5. Pass cutting thread over the deflection roller onto the spooling device.
    6. 11.6. Separate glass by spooling the cutting thread on the spooling device as far as point -P3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • The fastening force can be increased by moistening the fastening intake  .
12. Reposition spooling device.
    1. 12.1. Release spooling device.
    2. 12.2. Loosen the upper suction cup on the spooling device.
    3. 12.3. Pull cutting thread through onto the other side of the suction cup.
    4. 12.4. Secure suction cup onto the glass by moving the actuating lever.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • The fastening force can be increased by moistening the fastening intake  .
13. Separate glass as far as P4.
    1. 13.1. Position deflection roller in the upper left corner.
    2. 13.2. Press deflection roller with suction cup firmly against the glass.
    3. 13.3. Secure suction cup onto the glass by moving the actuating lever.
    4. 13.4. Pass cutting thread over the deflection roller onto the spooling device.
    5. 13.5. Separate glass by spooling the cutting thread on the spooling device as far as point -P4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • The fastening force can be increased by moistening the fastening intake  .
14. Separate glass as far as P5.
    1. 14.1. Release spooling device.
    2. 14.2. Position deflection roller in the lower left corner.
    3. 14.3. Press deflection roller with suction cup firmly against the glass.
    4. 14.4. Secure suction cup onto the glass by moving the actuating lever.
    5. 14.5. Pass cutting thread over the deflection roller onto the spooling device.
    6. 14.6. Separate glass by spooling the cutting thread on the spooling device as far as point -P5-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

15. Separate glass as far as P6.
    1. 15.1. Separate glass by spooling the cutting thread on the spooling device as far as point -P6-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

16. Remove glass.
