Cutting force for removing glass with cutting thread

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The force required for separating the glass is lower when the cutting thread is deflected to its maximum point. An angle greater than 90° should be avoided .

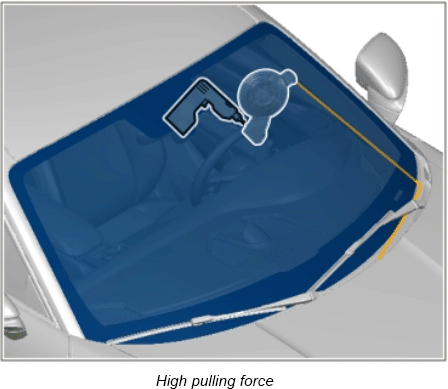

Unfavorable angle (strong pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

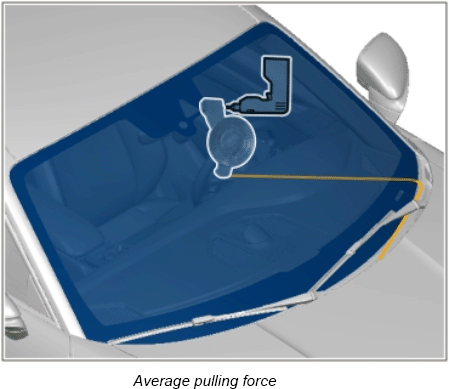

Favorable angle (average pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

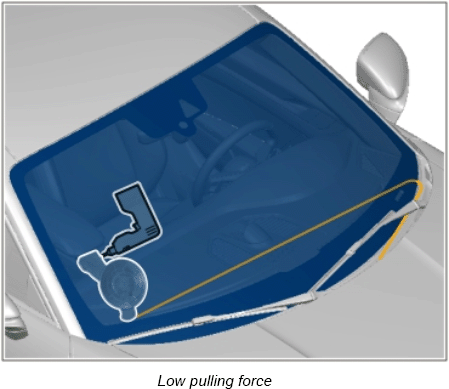

Optimum angle (minimum pulling force required)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
