Technical values
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

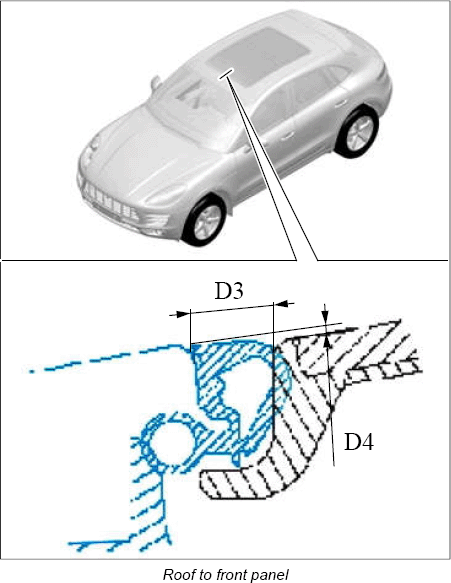

| Roof to front panel | D3 | Gap dimension | 10 mm | +/-1.2 mm | |
| Roof to front panel | D4 | Gap dimension | 1.7 mm | +/-0.5 mm | |
|
Roof to front panel |
|||||

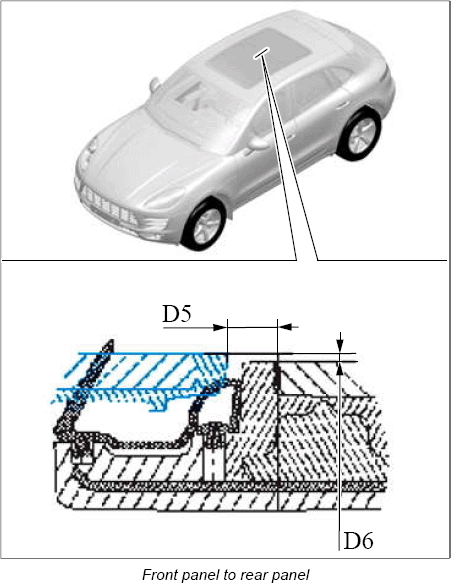

| Front panel to rear panel | D5 | Gap dimension | 2, 1 mm | +/-0.5 mm | |
| Front panel to rear panel | D6 | Gap dimension | 1 mm | +/-0.5 mm | |

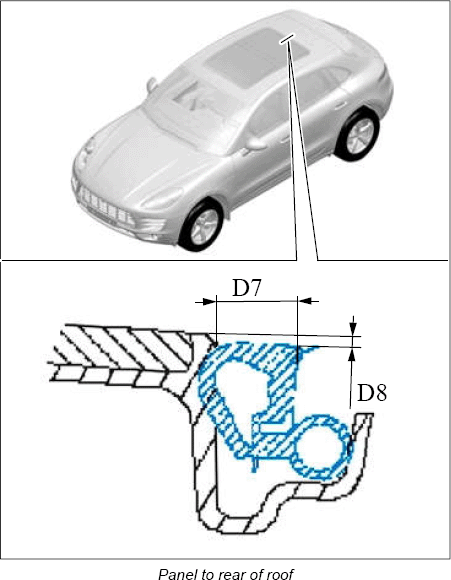

| Rear panel to roof | D7 | Gap dimension | 10 mm | +/-1.2 mm | |
| Rear panel to roof | D8 | Gap dimension | 0.8 mm | +/-0.5 mm | |
