Adapter cable 9257/7

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

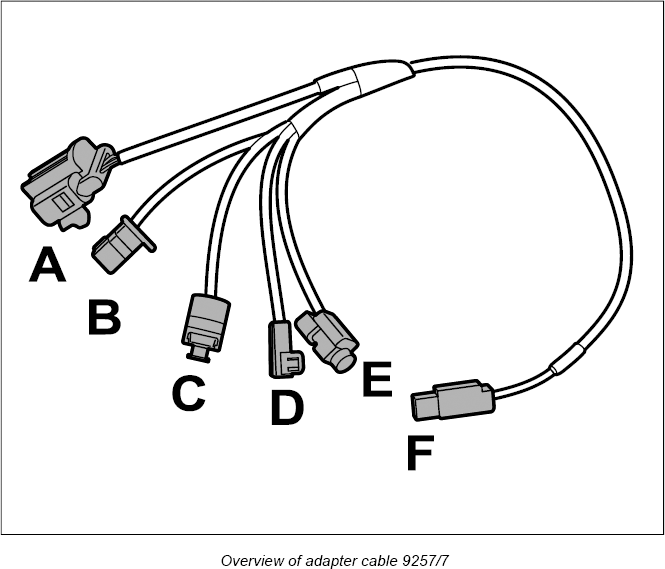

G12835266Courtesy of PORSCHE CARS NORTH AMERICA, INC.
A  Purple marking on the connector - adapter for ignition module of front lid
B  Blue marking - adapter for 1st stage of driver's airbag unit
C  Black marking on the connector - adapter for head airbag
D  Turquoise marking on the connector - adapter for 1st stage of passenger's airbag unit
E  Yellow marking on the connector - adapter for 2nd stage of passenger's airbag unit and seat-belt tensioner
F  Adapter for ignition device
