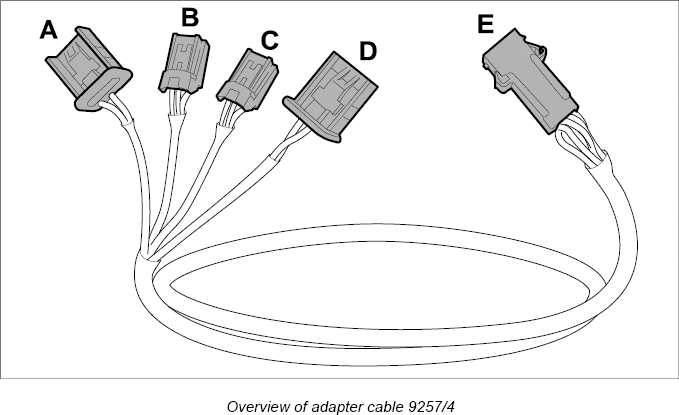

Adapter cable 9257/4
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| A |
Purple marking on the connector - adapter for knee airbag |
| B |
Marking A - adapter for 1st stage of driver's airbag unit |
| C |
Marking B - adapter for 2nd stage of driver's airbag unit |
| D |
Green marking on the connector - adapter not required |
| E |
Adapter for ignition device |
