Adapter cable 9257/6

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

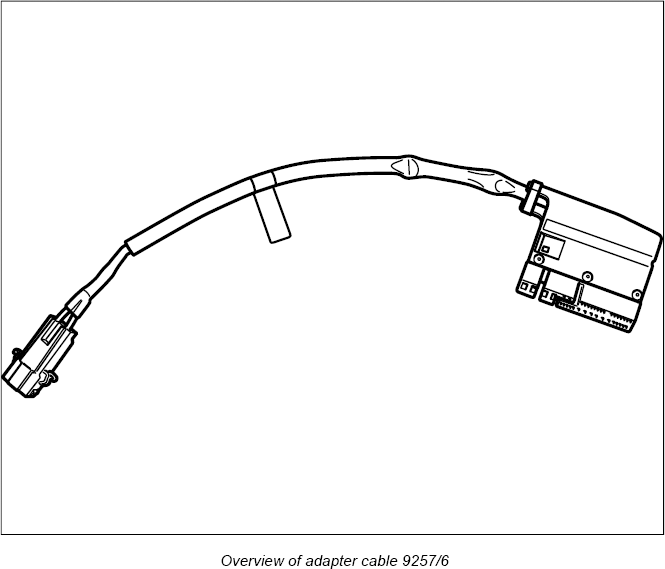

G12835273Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew seat from the seat rails. → 720119 REMOVING AND INSTALLING FRONT SEAT .
  2. Unplug central connector for seat.

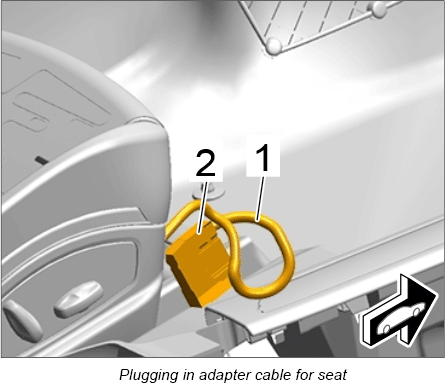

  3. Plug connector -2-  from adapter cable 9257/6 -1-  into the central connector for the seat.
    G12835274Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect the ignition device 9257  to the 2-pin connector of the adapter cable 9257/6  .
  5. Place the ignition device in front of the vehicle through the door gap.
