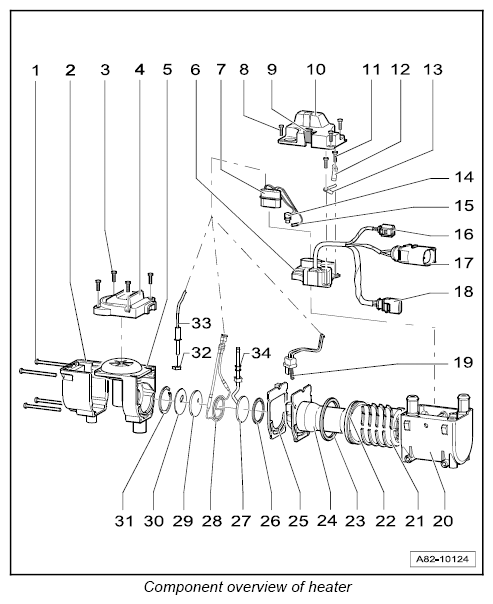

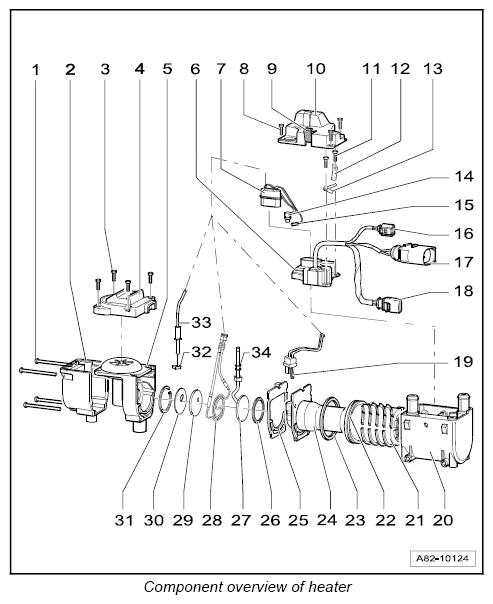

Heater components

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE SPECIFICATION

Location	Description	Type	Basic value
Screws securing cover for electric motor to combustion air housing	Item 1	Tightening torque	6 Nm (4.5 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws securing cover to combustion air blower	Item 3	Tightening torque	3 Nm (2 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws securing cover for control unit to heat exchanger housing	Item 8	Tightening torque	3 Nm (2 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws securing retaining clip to heat exchanger housing	Item 11	Tightening torque	3 Nm (2 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
