Assembling rear shock absorber

Information

A soapy solution can be used for fitting the rubber stop in the boot.

1. Fit rubber stop into boot and spring-strut mount.
2. Fit all parts (spring-strut mount, rubber stop and boot) on the shock absorber.

   Information

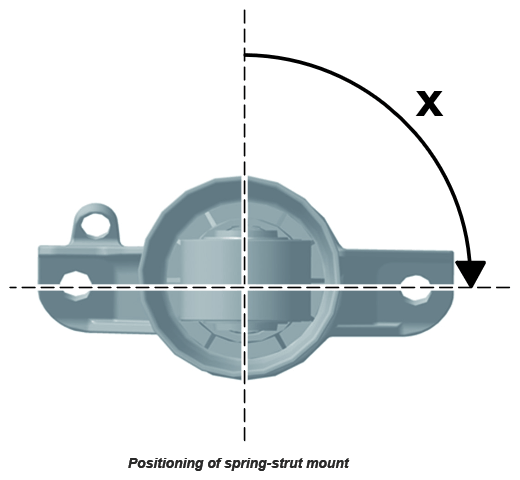

   The upper spring-strut mount must be at an angle -x-  of → Angle: 90°+/-10°  with respect to the lower spring-strut mount.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

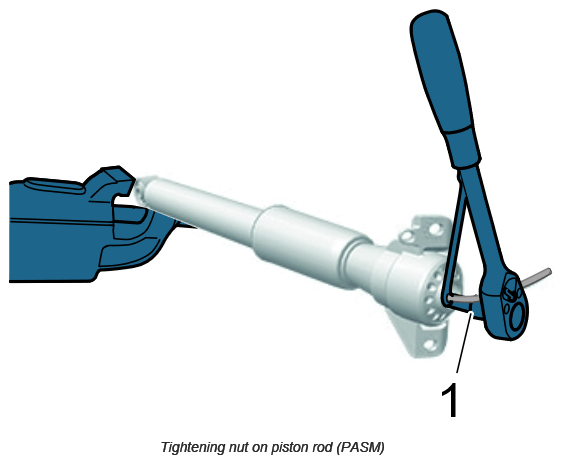

3. Tighten nut on piston rod and counter at the hexagon on the piston rod at the same time. Use socket-wrench insert 3353 -1-  on vehicles with PASM.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

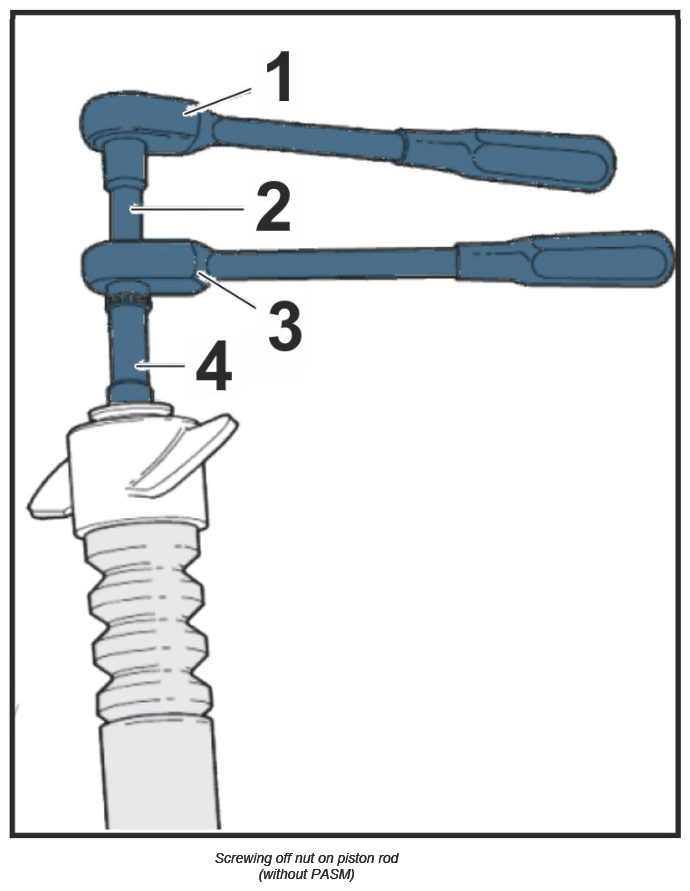

   On vehicles without PASM, the nut on the piston rod can also be tightened using shock absorber set T10001  . → Screwing off nut on piston rod (without PASM)

   1. Ratchet (commercially available)
   2. T10001/9
   3. T10001/11
   4. T10001/1

   Shock absorber without PASM: Tightening torque 35 Nm (26 ft. lb.)

   Shock absorber with PASM: Tightening torque 35 Nm (26 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. For vehicles without PASM:  Fit protection cap on spring-strut mount.

   Information

   When fitting the connector housing on the PASM line, always pay particular attention to the following:

   • Green line must be inserted into slot 1 (see inscription on connector housing)  .
   • Brown line must be inserted into slot 2 (see inscription on connector housing)  .
   • After fitting the connector, the secondary lock must be locked (use tool VAS 1978/17)  .
5. For vehicles with PASM:  Fit grommets on PASM line and fit connector housing.
