Removing rear shock absorber

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wheel carrier raised incorrectly

Risk of squashing
Risk of damage to components

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Shock absorbers must always be replaced in pairs as soon as at least one of the following preconditions is met:

→ Mileage: 25, 000 km (15, 500 mls)
→ Age: 2 Jahre

Lift up the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Turn the wheel hub in such a way that a bore for a wheel bolt is at the top.

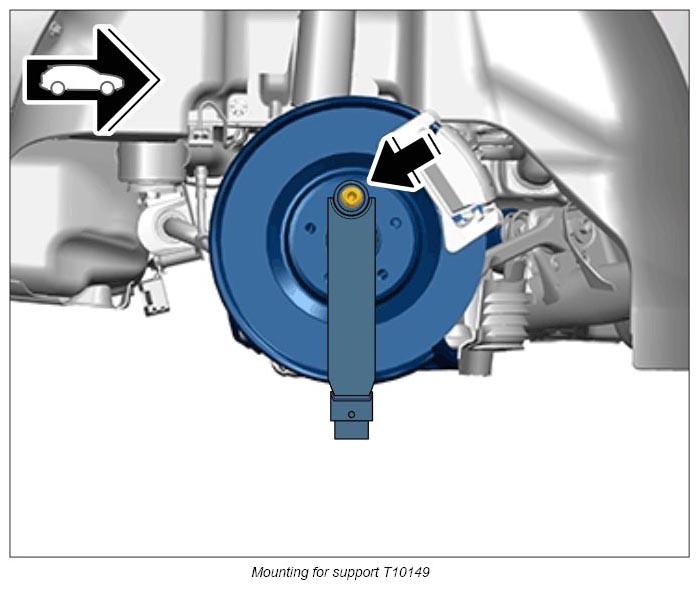

2. 1.2. Support T10149 must be secured to the wheel hub with a wheel bolt
3. 1.3. Support T10149 must now be fitted into the Transmission and Engine Jack WE 1599 .
4. 1.4. Lift up the wheel bearing housing.

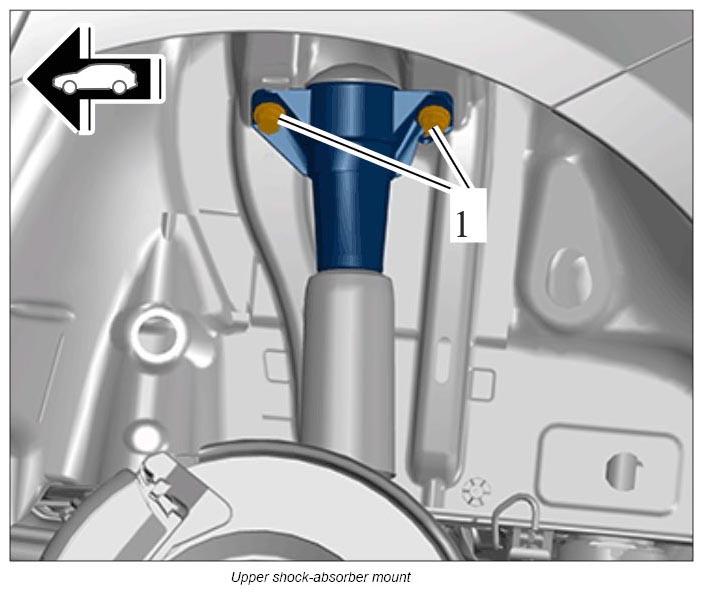

Unscrew fastening screws -1 - at the top of the shock absorber.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Only for vehicles with PASM:

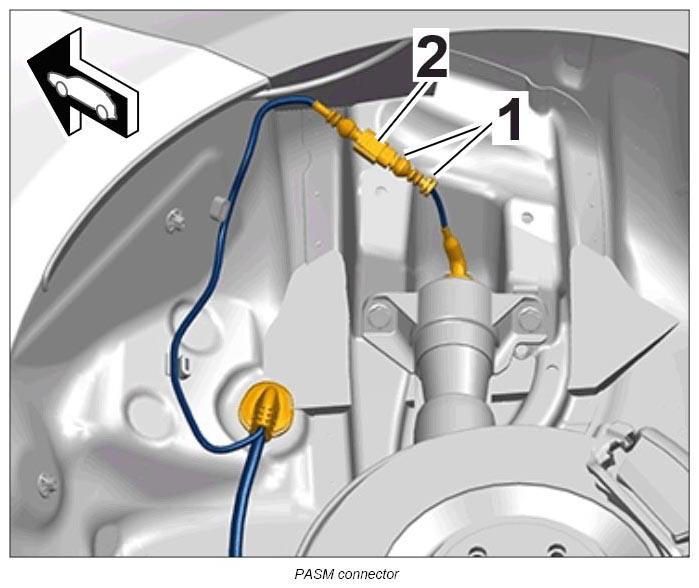

Loosen PASM line from the bracket -1- and release and disconnect connector -2-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

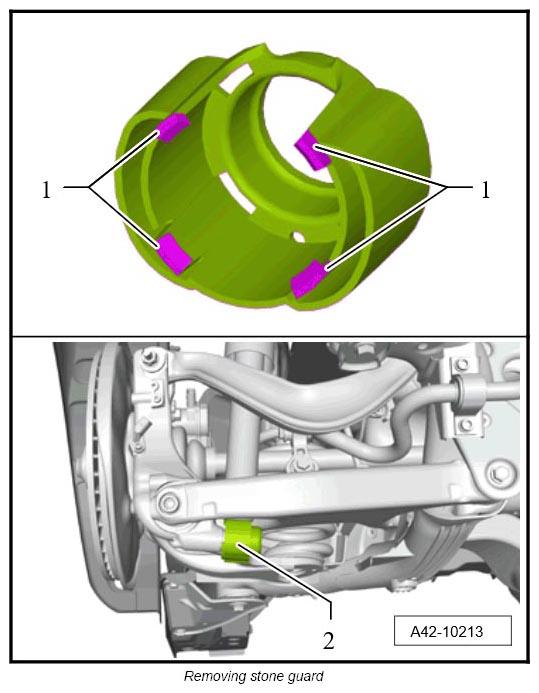

Release locking lugs -1- and remove stone guard -2-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

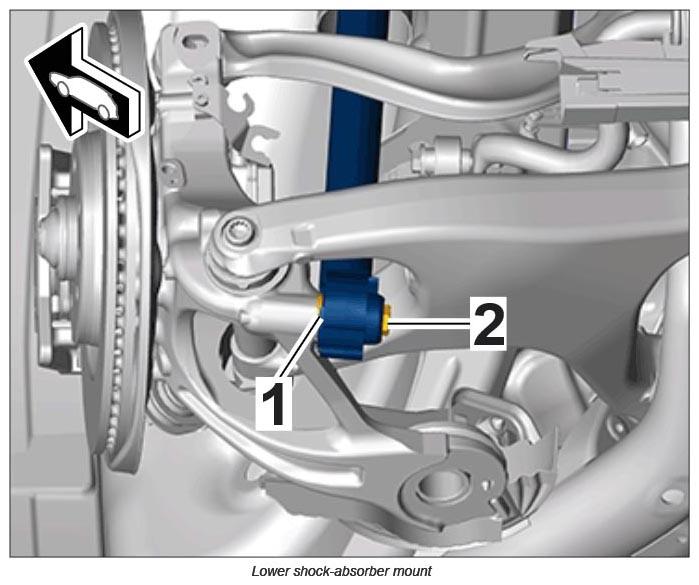

Unscrew fastening screw -2- and remove washer -1-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove shock absorber by pulling it downwards.
