Removing connecting link
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

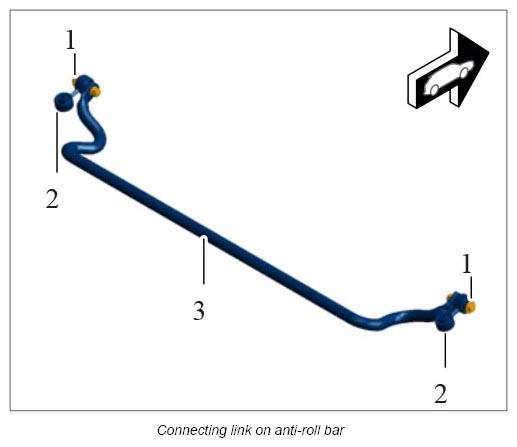

- Unscrew fastening screw -1-
for the connecting link -2-
on the removed anti-roll bar -3-
and take off the connecting link -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
